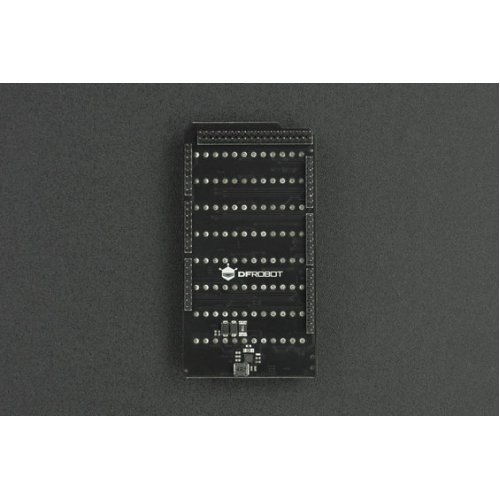

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

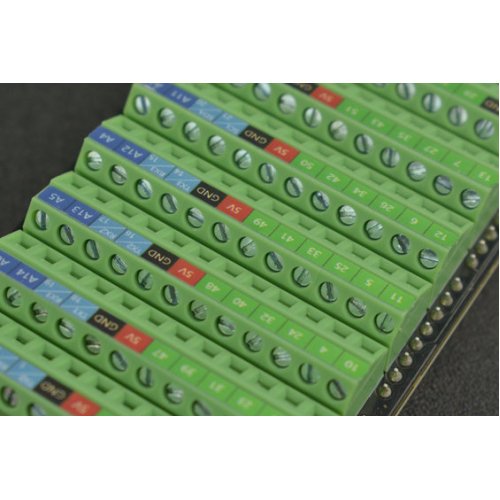

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. The onboard 18pin-FPC socket makes it convenient for connecting a screen.
Features:
- Stable and reliable connection
- Easy wiring
Specifications:
- VIN Input Voltage: 7-24V DC
- Max Load Power: 10W
- Terminal Block Pitch: 3.5mm
- Cable Size Range: 26AWG-16AWG
- Wire Strip Length: 5mm
- Screw: M2

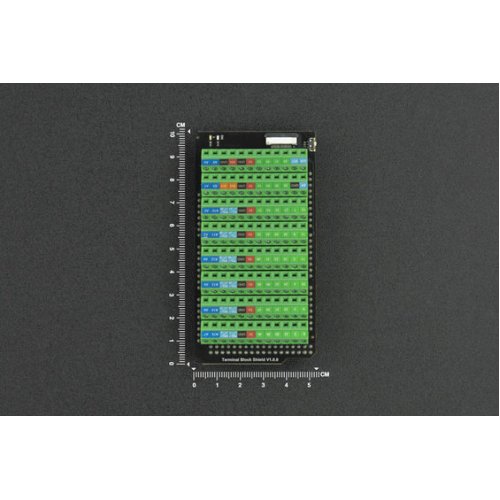

- Dimension: 101.5 *53.3 mm/4.00*2.10”
- SHIPPING LIST
- Terminal Block Shield for Arduino Mega x1
Applications:
- Commercial Project
- Art Show
Package Includes:
- 1 x Terminal Block Shield for Arduino Mega
Terminal Block Shield for Arduino Mega
- Brand: DFRobot
- Product Code:NR-DFR-Terminal-Block-Shield-Arduino-Mega
- Reward Points:37
- Availability:In Stock
- रo 3,568.00
-
रo 3,096.00
- Price in reward points:3686
-
- 4 or more रo 3,553.00
- 8 or more रo 3,538.00
- 20 or more रo 3,445.00
