GPS Receiver for Arduino is a unit embedding GPS module and antenna in a small foot-print enclosure. By using the TinyGPS library, Arduino can retrieve geographic coordinates (latitude and longitude, altitude), speed, heading, and GMT time.

Specifications:
  • UBX-G7020-KT solution
  • 1Hz(default) ~ 10Hz output
  • 9600bps(default) [support:4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600] TTL serial interface
  • 5v @ 30mA (support 3.3~5v)
  • 56-Channel receiver
  • Extremely high sensitivity -161dBm
  • Accuracy 2.5m (Autonomous) / <2m[SBAS]
  • Operating temperature: -40°C to 85°C
  • Hot Start: 1s
  • Warm Start: 28s
  • Cold Start: 29s
  • Module Size 28 x 28 x 8.6mm (1.10 x 1.10 x 0.34")
  • Enclosure Size 37x48x16mm(1.46x1.89x0.63")
  • LED indicator
  • Pin Definition:
    • White: PPS
    • Red: VCC
    • Blue: TXD
    • Green: RXD
    • Black: GND
    • Yellow: EN
Documents:

Package Includes:

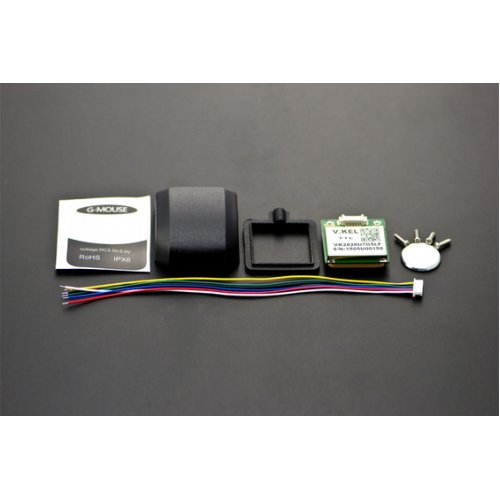

  • 1 x GPS Module with Enclosure

Write a review

Please login or register to review

GPS Module with Enclosure

  • Brand: DFRobot
  • Product Code:DFR-GPS-Module
  • Reward Points:16
  • Availability:In Stock
  • रo 1,584.00
  • रo 1,375.00

  • Price in reward points:1637

  • 10 or more रo 1,578.00
  • 15 or more रo 1,571.00
  • 45 or more रo 1,530.00
