What is Mirror Reflection Photoelectric Sensor Switch?

A mirror reflection photoelectric sensor switch is a type of photoelectric sensor that uses a reflector to detect the presence or absence of an object.

  • It works by emitting a beam of light from an infrared LED towards a reflector. When an object interrupts the beam of light, the sensor detects the change in the amount of light received by the photodetector. This change in light level is then processed by the sensor's internal circuitry to produce an output signal that can be used to trigger an action or event.

Product Introduction:

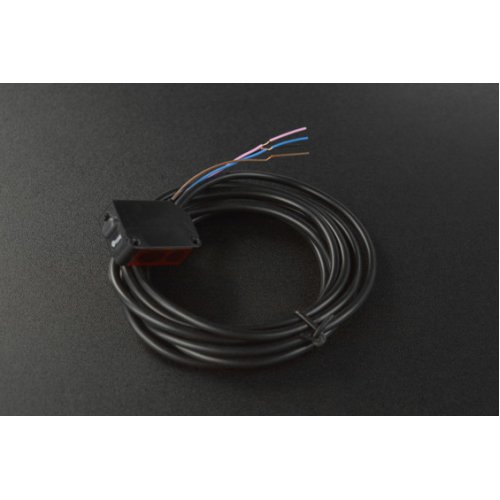

  • This photoelectric sensor is able to detect various transparent or semi-transparent objects and operates on a wide voltage range of DC 10V-30V. Typically, it’s used with a reflector and can detect objects within a distance of 10cm to 100cm.

The device is equipped with a learning function button(SmartTune) that allows users to set its sensitivity with the button during initial installation so as to ensure optimal performance. Align the sensor with the reflector, long pressing the SmartTune for over 5s, and release it when the indicators flash alternately, then the setting is successful and users can get the optimal sensitivity.

Besides, lightly pressing SmartTune can switch between normally open and normally closed NPN and PNP types, meeting different scenario requirements. The sensor features short circuit protection, reverse polarity protection, over-current protection, surge protection, and dual independent output protection for safe and reliable use.

Basic Settings

Normally Open (NO) & Normally Closed (NC) Settings

Short press the SmartTune button to set the NO and NC modes.

StatusNo object detectedObject detected
NOStability indicator is on, operation indicator is off, output disabledStability indicator is on, operation indicator is on, output enabled
NCStability indicator is on, operation indicator is on, output enabledStability indicator is on, operation indicator is off, output disabled

Note: The stability indicator is green, and the operation indicator is orange. After powering the sensor on, if the stability indicator is steady on, then the setting is successful; if it is steady off, then the setting failed; if the stability and operation indicators are flashing rapidly, it indicates a short circuit output.

Maximum Sensitivity Setting

TypeStepsAdjustmentApplicable Scenario
Reflective1Fix the device and the reflector, then with no object detected, long press the SmartTune button until the stability indicator and the operation indicator flash alternately.Suitable for detecting no-reflection transparent or non-transparent objects.
2Release the SmartTune button to complete the setting. (If the device vibrates, wait for one vibration period before executing this step.)


Installation Diagram                                                                                                                               Installation Diagram

Note: The transmitter should be installed directly facing the reflector, and the distance between the reflector and the sensor should be greater than 100mm.

  • The lead wire is 2m pure copper flexible cable.
  • Wiring sequence: brown for positive, blue for negative, black for PNP, and pink for PNP.

Features:

  • Detects various transparent or semi-transparent objects
  • Operates on a wide voltage range of DC 10V-30V
  • Can detect objects within a distance of 10cm to 100cm when used with a reflector
  • Equipped with a learning function button (SmartTune)
  • Can switch between normally open and normally closed NPN and PNP types
  • Short circuit protection and dual independent output protection

Specifications:

  • Control Output: 100mA (30V DC)
  • Control Input: 10V-30V DC
  • Rated Current: 15mA
  • Detection Distance: 1000mm
  • LED Source: Red spotlight source
  • Response Time: 5ms
  • Hysteresis: 15%
  • Repeatability: 1mm
  • Protection Circuit: Reverse polarity protection, over-current protection, surge protection, and dual output independent protection
  • Indicators: Orange LED (operation indicator), Green LED (stability indicator)
  • Light Spot Diameter: Φ2mm to Φ25mm (gradually increasing from 1mm to 1000mm)
  • Operating Environment: -10℃ to 60℃, 35%RH to 65%RH
  • IP Rating: IP24

Applications:

  • Detects transparent/semi-transparent objects
  • Detects objects within 10-100cm with reflector
  • SmartTune sets sensitivity
  • Switches between NPN and PNP types
  • Various protection features for safe use.

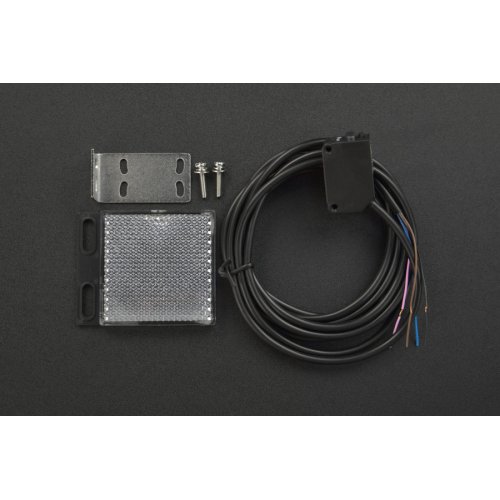

Package Includes:

  • 1 x Mirror-reflection-photoelectric-switch

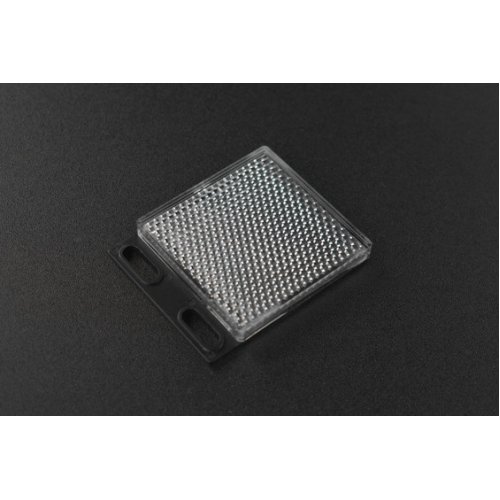

  • 1 x Reflector
  • 2 x M3 × 0.5 Screw
  • 1 x Installation Plate
