This ultrasonic time-of-flight (ToF) sensor utilizes the difference in energy of the ultrasonic echo signal on various surfaces to identify materials. Featuring ultra-low power, small size, and light weight, the ultrasonic material detection sensor is specially designed for material identification within a short range of 2-10cm.

The ultrasonic sensor can distinguish hard and soft materials and output information by IO (high/low) or UART. Compact and easy to install, it is mainly suitable for robotic cleaners to identify the floor material and automatically adjust the cleaning strategy according to the recognized ground information, thus achieving intelligent cleaning.

                                                              Figure: Material inspection

                                                                                 Figure: Assembly diagram

                                         Figure: Parameter description of FOV

                                                    Figure: FOV 45° Scan Area

Features:

• Small size & light weight
• Wide effective distance range for detecting material
• Wide effective FOV for detecting material
• High reliability
• Ultrasonic principle
• Miniature and ultra-low-power
• Easy to embed

Specifications:

• Input Voltage: 3.3V
• Start-up Current: 50mA
• Operating Current: 8mA
• Driving Frequency: 175KHz
• Detection Range: 2 to 10cm
• Detection Frequency: 100Hz
• FOV: 45°
• Operating Temperature：-10 to 50℃
• Storage Temperature: -30 to 70℃
• Lifetime: 3000h
• EDS Protection Level: 15KV
• Protection Level: IP54
• Communication Mode: UART/IO
• Weight: 1.0g (wires not included)

Applications:

• Intelligent Cleaning

Documentation:

• Product wiki

Package Includes:

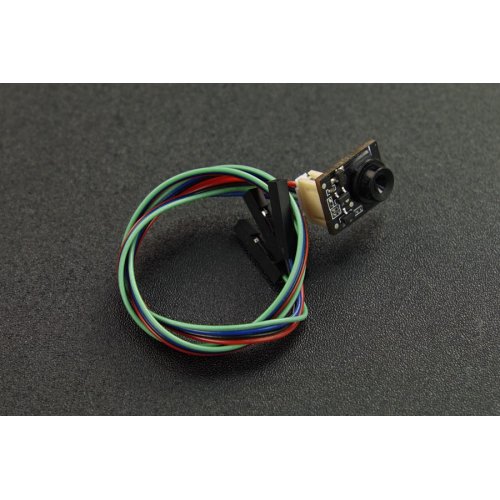

• 1 x Ultrasonic Material Detection Sensor
• 1 x ZH1.5T-4P DuPont Connector
