The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology. With the improved detection accuracy, the sensor features a 25~3000mm sensing range, automatic smudge correction, and glass cross-talk immunity. With special algorithms and ingenious module construction, the VL53L3CX is also able to detect different objects within the field of view (FoV) with depth understanding.

Note:

  • The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.
  • Multi-target distance measurement can only be triggered under certain conditions.

Features:

  • High accuracy distance measurement
  • Long-distance and accurate ranging up to 300 cm
  • Typical full FoV 25°
  • Multi-target distance ranging
  • Immune to glass cross-talk
  • Smudge compensation function

Specifications:

  • Power Supply: 3.3V~5V
  • Operating Current: <20mA
  • Detection Range: 25-3000mm
  • Emitter: 940nm invisible laser(VCSEL)
  • FOV: 25°
  • I2C Address: 0x29
  • Operating Temperature Range: -20℃~85℃

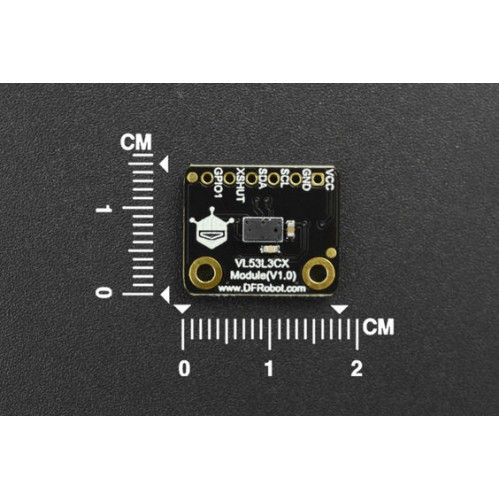

  • Dimension: 18x15mm/0.71x0.59"

Documents:

Warranty: 90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

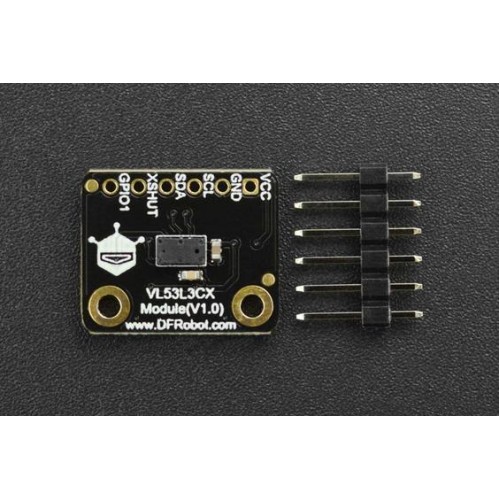

  • 1 x Fermion:VL53L3CX ToF Distance Ranging Sensor(Breakout)
  • 1 x 2.54-6P Black Single Row Connector

Write a review

Please login or register to review

Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout)

  • Brand: DFRobot
  • Product Code:DFR-Fermion-VL53L3CX
  • Reward Points:9
  • Availability:In Stock
  • रo 854.00
  • रo 741.00

  • Price in reward points:882

  • 15 or more रo 851.00
  • 30 or more रo 847.00
  • 80 or more रo 825.00
