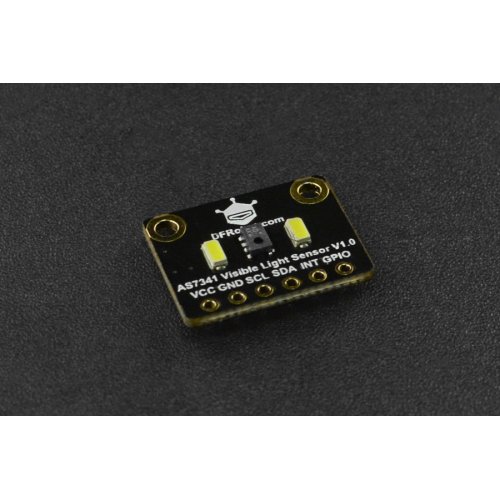

DFRobot AS7341 11-Channel Visible Light Sensor-Breakout employs the new generation of AS7341 spectral sensor IC launched by the well-known ARM company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two on-board extra-bright LEDs can supply light in dark environment.
Features:
- 8 optical channels covering the visible spectral range
- 50Hz and 60Hz ambient light flicker detection
- 6 independent 16-bit ADC channels
Specifications:
- Power Supply: 3.3V~5V
- Visible Light Detection Range: F1(405-425nm), F2(435-455nm), F3(470-490nm), F4(505-525nm), F5(545-565nm), F6(580-600nm), F7(620-640nm), F8(670-690nm)
- Operating Current(LED Off): <5mA
- LED Driving Current: Class 1-20 (4-42mA)
- I2C Address: 0x39
- Operating Temperature Range: -30℃~85℃
- Operating Humidity Range: 5%RH~85%RH
- Dimension: 18 x 14mm/0.71 x 0.55”
Applications:
- High accuracy color detection and matching
- Color mixing effect detection
- Lighting color temperature adjustment
- Lighting atmosphere control
- Modern plant cultivation
Package Includes:
- 1 x AS7341 Visible Light Sensor
- 1 x 2.54-7P Single Row Black Pin Header
Fermion: AS7341 11-Channel Visible Light Sensor (Breakout)
- Brand: DFRobot
- Product Code:DFR-AS7341-Breakout
- Reward Points:19
- Availability:In Stock
- रo 1,860.00
-
रo 1,614.00
- Price in reward points:1921
-
- 7 or more रo 1,852.00
- 15 or more रo 1,844.00
- 37 or more रo 1,796.00
