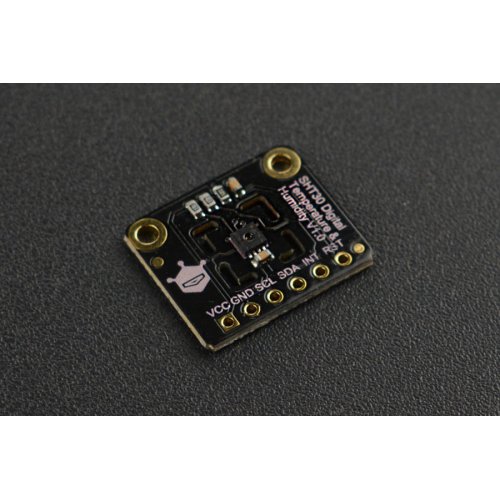

This DFRobot SHT30 digital temperature and humidity sensor is based upon the Sensirion SHT30 sensor IC. Thanks to Sensirion’s CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and strong anti-interference ability. The sensor supports I2C communication, and is compatible with 3.3V/5V controllers like Arduino, micro:bit, ESP32. It is easy to achieve precise and high-reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.
SHT30 is the low-cost version of the SHT3x series. It provides humidity accuracy ± 2%RH@10% RH~90% RH (at 25°C), and temperature accuracy±0.2°C@0°C ~65°C (typical).

Features:
  • High precise, internal auto-calibrated, digital output
  • Low power consumption, fast response, and strong anti-interference
  • Compatible with 3.3V/5V controllers
Applications:
  • Urban Environmental Monitoring
  • Intelligent Building, Smart Home
  • Grain Storage
  • Plant and animal breeding system
Specifications:
  • Operating Voltage: 2.15~5.5V
  • Operating Current: <1.5mA
  • Humidity Detection Range: 0%RH~100%RH
  • Humidity Accuracy: ±2%RH@10%RH~90%RH(at 25℃)
  • Temperature Detection Range: -40℃~125℃
  • Temperature Accuracy: ±0.2℃@0℃-65℃(Typical)
  • Communication: I2C
  • Outline Dimension: 19x16mm/0.75x0.63”
  • Mounting Hole Size: 2mm/0.08”
  • Mounting Hole Pitch: 15mm/0.59”

Package Includes:

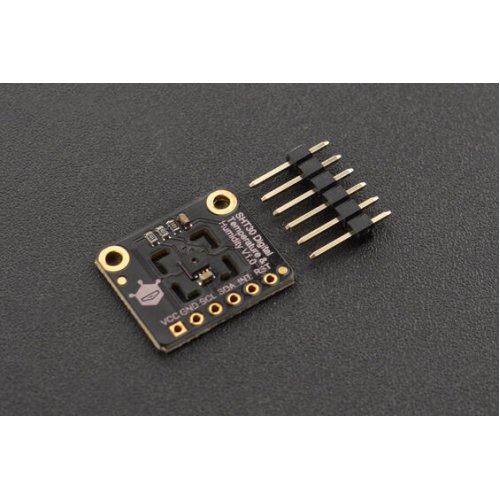

  • 1 x DFRobot SHT30 Digital Temperature and Humidity Sensor
  • 1 x Black 2.54-6P Single Row
