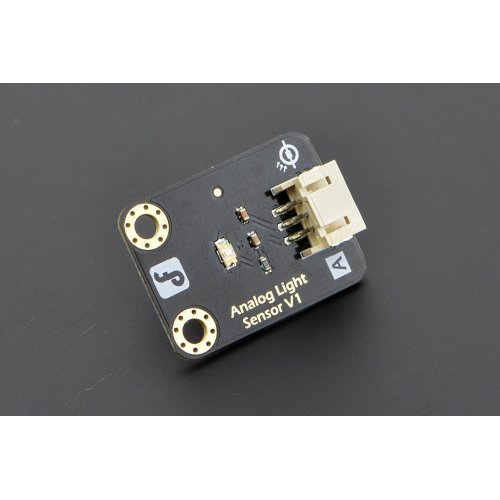

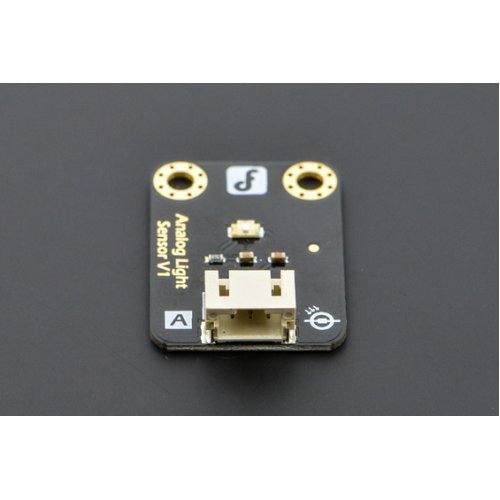

Light sensors are probably one of the most common sensors in life, they can be found in your laptop, phone or home lighting system. A light sensor measures the level of light in a room or ambient light in a space. This analog light sensor uses LX1972 as its ambient light sensing part, with spectral response that closely emulates human eyes. It helps you to to detect the light density and reflects the analog voltage signal back to Arduino controller. You can set the threshold of voltage level to trig other units on Arduino project.
Features:
- Near Human Eye Spectral Response and Very Low IR Sensitivity
- Temperature Stable
- Scalable Output Voltage
- Output with Low Fitler(<50Hz)
Specifiactions:
- Supply Voltage: DC 3~5.5V
- Operating Temperature: -40~80°C
- Illumination Range: 1 – 800Lux
- Output: analog voltage, 0 – 3.6V @VCC=5V
- Module Size: 30 x 22mm(1.18x0.87")
Documents:
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Analog Light Sensor LX1972
- 1 x Analog Sensor Cable
Gravity: Analog Light Sensor LX1972
- Brand: DFRobot
- Product Code:DFR-LX1972-Light-Sensor
- Reward Points:3
- Availability:In Stock
- रo 393.00
-
रo 371.00
- Price in reward points:393
