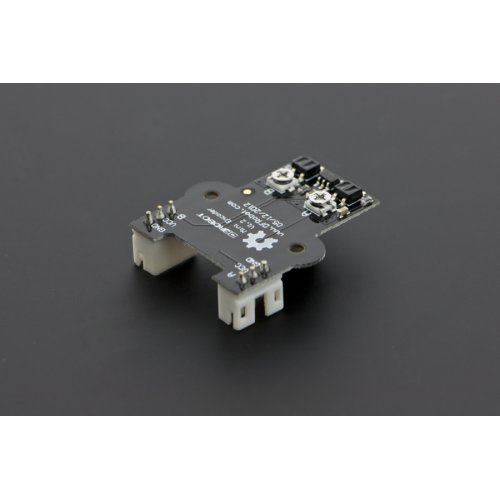

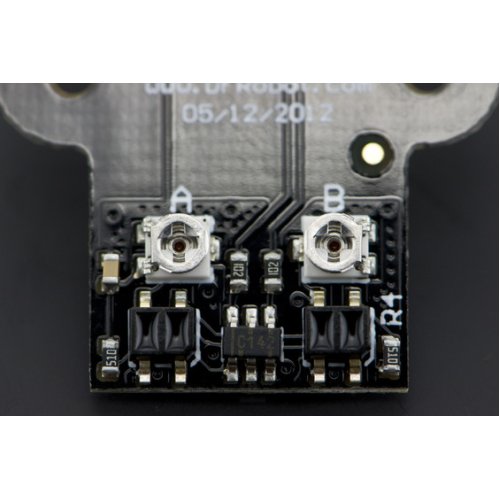

MiniQ Robot Chassis Encoder is matched with 2wd miniQ Robot chassis. AB two-phase pulse wave,measured by two infrared reflective sensor. These two sensor pulse waveform is close to a phase difference of 90 degrees, through the AB two-phase lead and lag of the waveform judged wheel forward rotation or the reverse.
You can install it on the motor bracket or mini robot chassis to do the PID and position control.
The only difference between the new and old version is that the interface is compatible with sensor cable.

Specifications:
  • Working Voltage:3.3V or 5V
  • Working Current:<14mA @5V
  • Pulse Output:12 per revolution
  • Compatibility:42mm x 19mm (1.65 x 0.75") wheel
  • Adjustable receiver sensitivity
  • Applications:
  • 2WD MiniQ Robot chassis
Warranty: 90 days
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Mini Robot chassis Encoder
  • 1 x Sensor Cable
