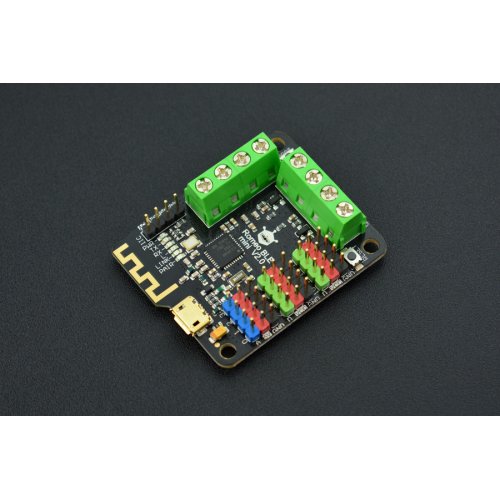

It has 8 Digital pins, 4 analog pins and integrates Bluetooth 4.0 wireless communication function. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to Makers.
V2.0 has upgraded its motor driver IC, it replaces HR8833 with TB6612 motor driver chip. TB6612 has the same control logic with L298 motor driver. The code will be compatible with Romeo robot control board. And it finally breakouts 2 interrupt pins now! You can connect encoders to make PID motor control.
Features:
- Support Gravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules
- Support external power supply automatically switch, can simultaneously USB and external power supply
- Support wireless download program / wireless communication function
- Support mobile phone APP control
- Two-way H-bridged Motor Driver
- Support servo external power input
- Supports AT commands to configure BLE
- Support serial transmission
- Support master and slave switch
Specifications:

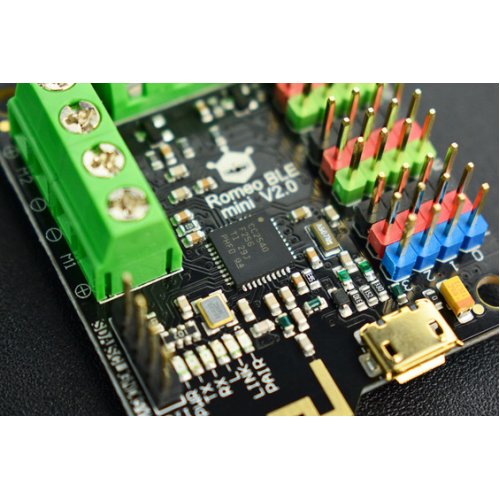

- BLE chip: TI CC2540
- Transmission distance: 30m (open area)
- Microprocessor: ATmega328P
- Board selection: Arduino UNO
- Flash: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM2: KB (ATmega328P)
- EEPROM: 1 KB (ATmega328P)
- Clock Frequency: 16 MHz
- Digital I/O Pins: 8
- PWM Digital I/O Pins: 4 (D3, D9, D10, D11)
- Analog Input Pins: 4
- Output current: 1.2A single-channel continuous drive current
- Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
- Motor Drive Pins: D4, D5, D6, D7
- microUSB connector
- 2x2A H-bridge motor driver

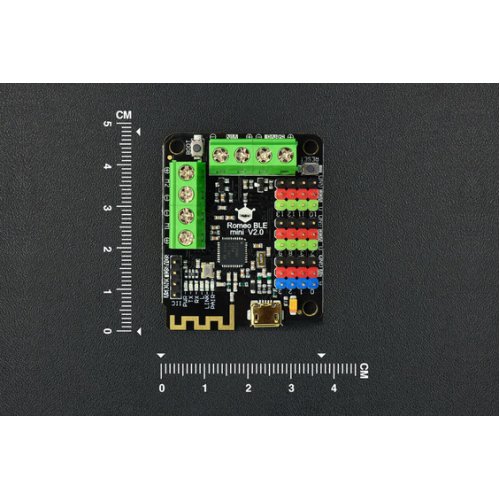

- Size: 45x38.5mm
Documents:
Package Includes:
- 1 x Romeo BLE mini - Small Arduino Robot Control Board with Bluetooth 4.0
Romeo BLE mini - Small Arduino Robot Control Board with Bluetooth 4.0
- Brand: DFRobot
- Product Code: DFR-Romeo-BLE-Mini
- Reward Points: 25
- Availability: In Stock
- रo 2,411.00
-
रo 2,092.00
- Price in reward points: 2490
-
- 5 or more रo 2,401.00
- 10 or more रo 2,391.00
- 30 or more रo 2,328.00
