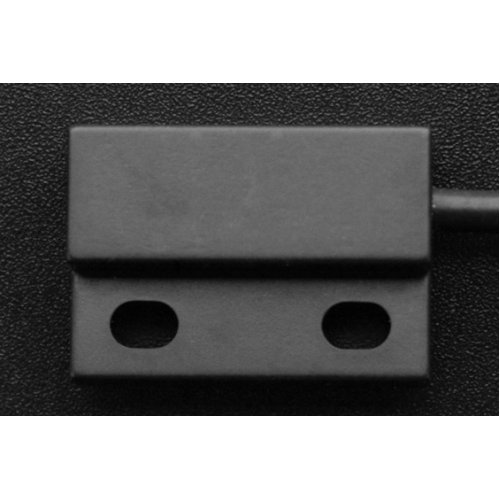

The magnetic switch mainly comprises two parts-the inducting end and trigger. The former has a reed switch enclosed inside and there is a cable connected to it, and the latter is a magnet enclosed within a plastic case. When the distance of these two parts is smaller than 1cm, the reed switch will be connected, by which the position change of an object can be detected for realizing functions like travel controlling, position-limitation protection, etc.

Specifications:

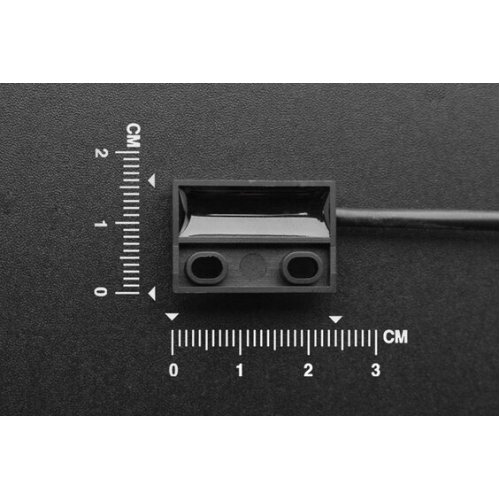

  • Dimension: 6x14x23mm
  • Output Mode: NO/NO+NC
  • Power Voltage: 0~380VDC/AC
  • Contact Rating: 1W
  • Load Current: ≤50mA
  • Operating Temperature: -10~70℃
  • Operating Humidity: 25~95%
  • Switching Frequency: 200Hz
  • Withstand Voltage: 1000V/AC 50/60HZ 60S
  • Insulation Resistance: ≥50MΩ(500VDC)
  • Withstand Vibration: 50HZ
  • Protection Grade: IP67
  • Enclosure Material: PBT/ABS
Warranty: 90 days
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

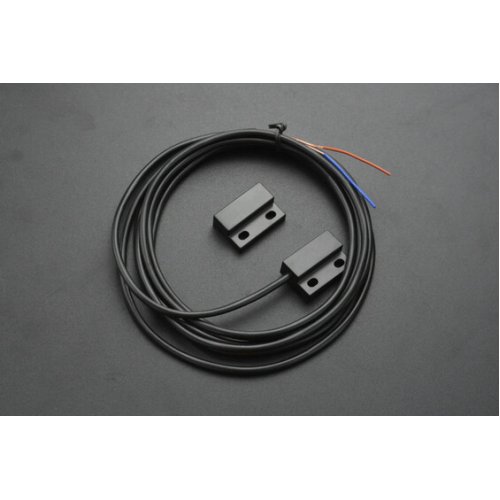

Package Includes:
  • 1 x Magnetic Switch
  • 1 x Magnet
Frequency
Frequency Range 200Hz
Electrical Specifications
Maximum Operating Temperature -10~70℃
Defense Grade IP67
Resistance Insulation Resistance: ≥50MΩ
Physical Attributes
Enclosure Material PBT/ABS
Dimensions 6x14x23mm
Additional Information
Warranty 90 days

Write a review

Please login or register to review

Magnetic Switch

  • Brand: DFRobot
  • Product Code:DFR-Magnetic-Switch
  • Reward Points:5
  • Availability:In Stock
  • रo 441.00
  • रo 383.00

  • Price in reward points:455

  • 30 or more रo 439.00
  • 65 or more रo 437.00
  • 155 or more रo 426.00
