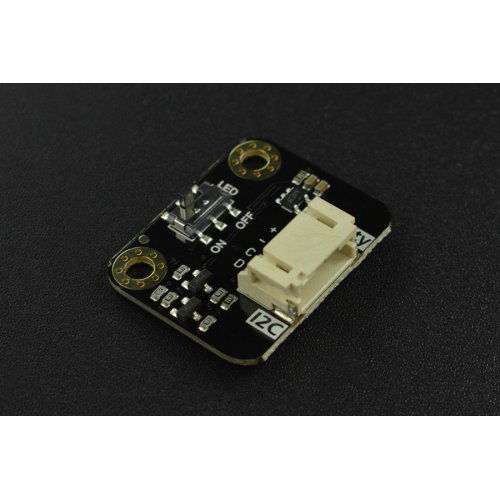

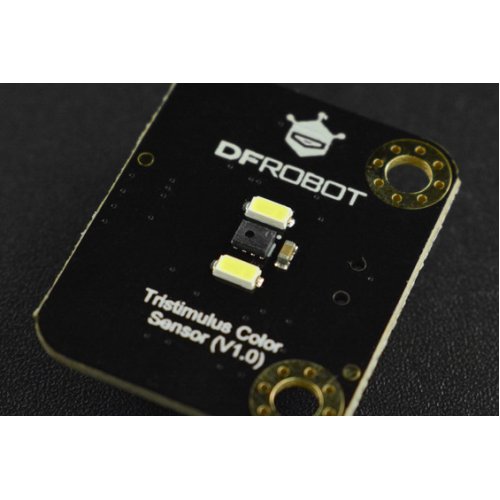

DFRobot Gravity: TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus color sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color.

Features:

• XYZ Tristimulus Filter
• Capable of ±10% illuminance and correlated color temperature accuracy
• Wide dynamic range and high sensitivity
• Programmable gain and integration time

Specifications:

• Power Supply: 3.3V~5V
• Operating Current: ＜5mA
• LED Operating Current: ＜15mA
• I2C Address: 0x39
• Operating Temperature Range: -30℃~85℃

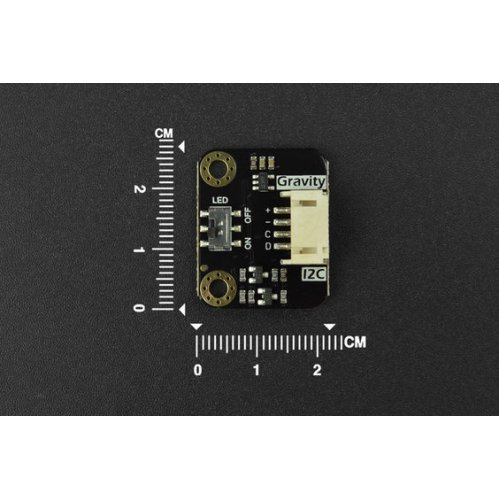

• Dimension: 22 x 27mm/0.87 x 1.06”

Applications:

• Color detection
• Brightness detection
• White balance detection
• Color temperature measurement

Documents:

• Product wiki

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

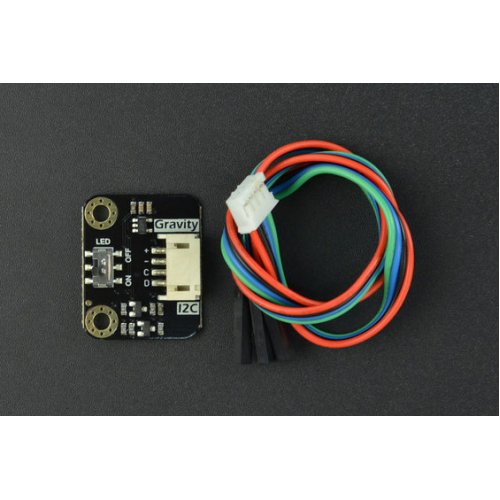

Package Includes:

• 1 x Gravity: TCS3430 Tristimulus Color Sensor
• 1 x Gravity-4P I2C/UART Sensor Connector
