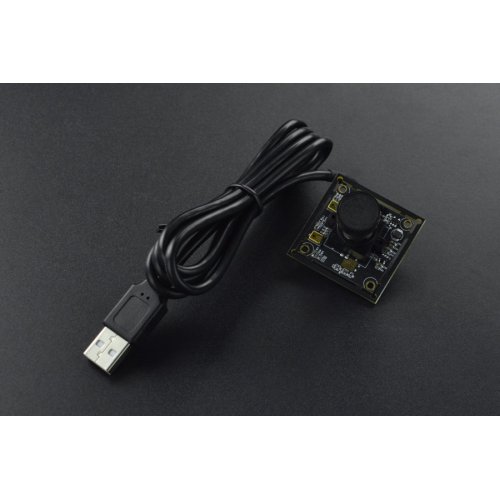

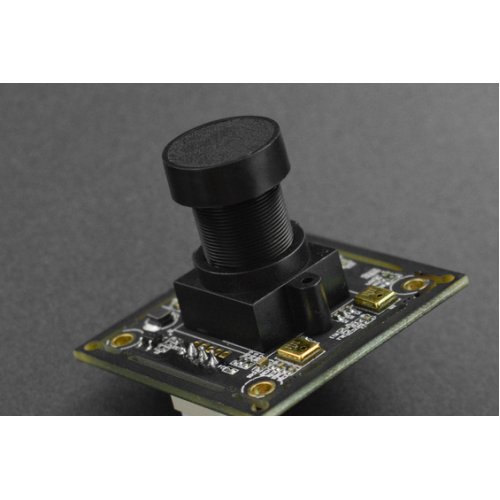

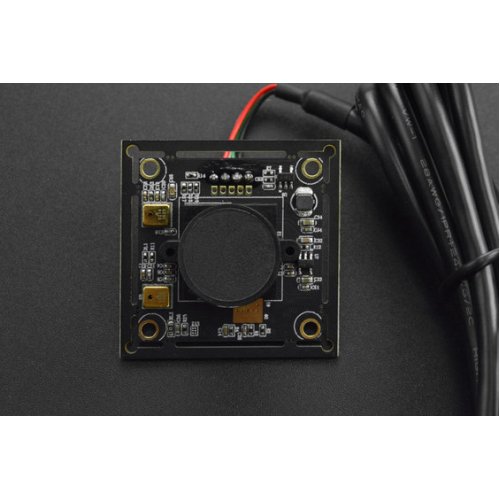

This is a 2 Megapixels driver-free night camera of USB port with up to 1920*1080 resolution. Based on the Sony IMX291 sensor, it features manual focus, interchangeable lens, plug, and play, bringing you HD photos and video even in low light condition. Compatible with operating systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with your Raspberry Pi and Jetson Nano mainboard when they are placed in a protective case.

Specifications:

Photosensitive Element: CMOS
Sensor: Sony IMX291
Lens Size: 1/2.8”
Pixel Size: 2.9μm*2.9μm
Image Distance: 1cm~∞
Max Effective Pixels: 1920(H) X 1080(V) 2 Megapixels
Image Output Format: MJPG/YUY2
Supported Resolution and Frame Rate:
- MJPG：640X480 @ 30fps / YUY2：640X480 @ 10fps
- MJPG：1280X480 @ 30fps / YUY2：1280X480 @ 10fps
- MJPG：1280X720 @ 30fps / YUY2：1280X720@ 10fps
- MJPG：1920X480 @ 30fps / YUY2：1920X480@ 10fps
- MJPG：1920X1080 @ 30fps / YUY2：1920X1080@ 5fps
Manufacturing: SMT（ROSH）

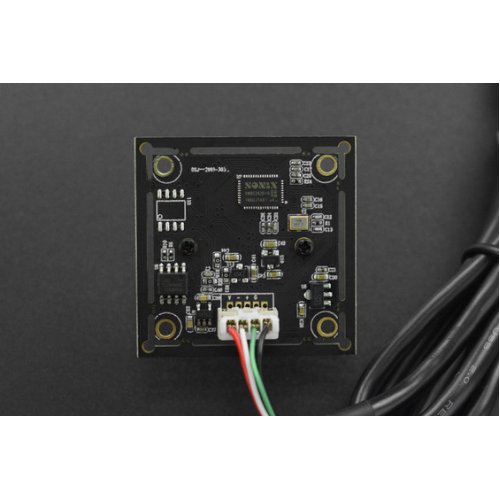

Interface: USB2.0 High Speed (4Pin-2.0mm Connector)
Focus: adjustable, manual, or fixed focus
Minimum Illumination: 0.0001 Lux
Driver-free Protocol: USB Video Class（UVC）
AEC/AEB/AGC Support
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Power Supply: USB BUS POWER 4P-2.0mm Socket
Operating Voltage: DC5V
Operating Current: 160mA（VGA）
Operating Temperature: -20～70℃
Optional Lens: size 1/2.8”, 1.8mm, 2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm
Dimension: 38*38mm/1.50*1.50”
Support OS:
- WinXP/Vista/Win7/Win8
- Linux with UVC（above linux-2.6.26）
- MAC-OS X 10.4.8 or later
- Wince with UVC
- Android 4.0 or above with UVC

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x USB Night Camera(With Microphone)

Processor Specifications
Operating System (OS)	Support OS: WinXP/Vista/Win7/Win8
Interface	USB2.0 High Speed
Controller Specifications
Operating Voltage	DC5V
Sensor Specifications
Sensor type	Sony IMX291
Sensor size	1/2.8”
Pixel Size / Density	2.9μm*2.9μm
Resolution	MJPG：1920X1080 @ 30fps / YUY2：1920X1080@ 5fps, MJPG：1920X480 @ 30fps / YUY2：1920X480@ 10fps, MJPG：1280X720 @ 30fps / YUY2：1280X720@ 10fps, MJPG：1280X480 @ 30fps / YUY2：1280X480 @ 10fps, MJPG：640X480 @ 30fps / YUY2：640X480 @ 10fps
Lens Specifications
Optical Format	MJPG/YUY2
