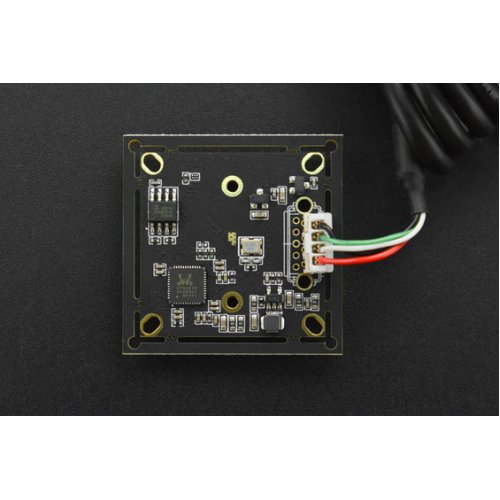

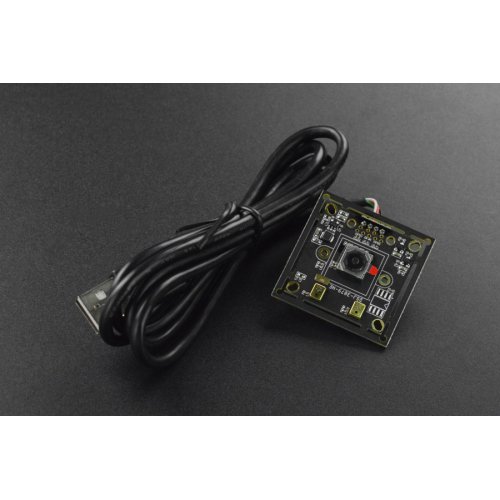

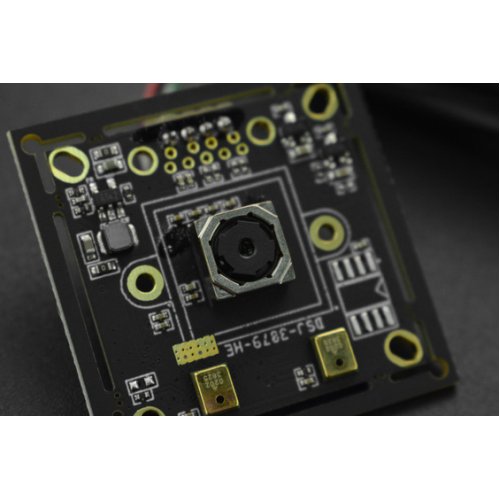

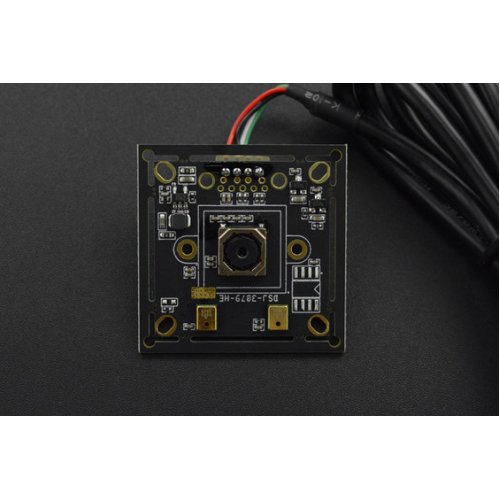

This is an 8000K pixels driver-free camera of USB port with up to 3264*2448 resolution. Based on the Sony IMX179 CMOS sensor, it supports autofocus, plug, and play, offering HD photos and video. Compatible with multiple systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with your Raspberry Pi and Jetson Nano mainboard when they are placed in a protective case. With a small size of 38mm*38mm, the camera can be embedded into various devices, and perfect for high-quality video system, biometrics recognition, industrial photography, HD monitoring, etc.,

Specifications:

Photosensitive Element: CMOS
Sensor: Sony IMX179
Lens Size：1/3.2inch
Pixel Dimension: 1.4μm
Image Area: 6.18mm*5.85mm
Max Effective Resolution: 3264(H) X 2448(V) 8 Megapixel
Image Output Format: JPEG
Supported Resolution and Frame Rate:
- 3264X2448 @ 15fps / 2592X1944@ 15fps
- 1920x1080 @ 30fps / 1600X1200@ 30fps
- 1280X720 @ 30fps / 960X540@ 30fps
- 800X600 @ 30fps / 640X480@ 30fps
S/N Ratio: 34dB
Dynamic Range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Mini illumination: 0.5lux
Shutter Type: Electronic rolling shutter / Frame exposure
Interface Type: USB2.0 High Speed
Driver-free Protocol: USB Video Class（UVC）
OTG Protocol: USB2.0 OTG
AEC/AEB/AGC Support
Support photo taking by pressing button
Adjustable Parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Camera Parameter: high-speed photographic apparatus camera, distortionless, size of 1/3.2, Auto-focus, 75 degree
Fill Light Power Supply Port: 4P-2.0 socket
Power Supply: USB BUS POWER 4P-2.0mm Socket
Operating Voltage: DC 5V
Operating Current: 160mA~260mA
Operating Temperature: -10～70℃
Storage Temperature: -20～85℃
Dimension: 38 x 38mm/1.50 x 1.50”
OS Supported:
- WinXP/Vista/Win7/Win8
- Linux with UVC（above linux-2.6.26）
- MAC-OS X 10.4.8 or later
- Wince with UVC
- Android 4.0 or above with UVC

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x USB Camera(With Microphone)

Processor Specifications
Interface	USB2.0 High Speed
Controller Specifications
Operating Voltage	DC 5V
Sensor Specifications
Sensor type	Sony IMX179
Sensor size	1/3.2inch
Resolution	3264X2448 @ 15fps / 2592X1944@ 15fps, 1920x1080 @ 30fps / 1600X1200@ 30fps, 1280X720 @ 30fps / 960X540@ 30fps, 800X600 @ 30fps / 640X480@ 30fps
S/N Ratio	34dB
Dynamic range	72.5dB
Lens Specifications
Optical Format	JPEG
