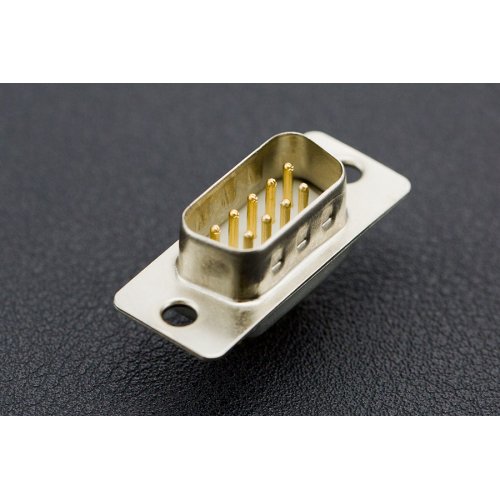

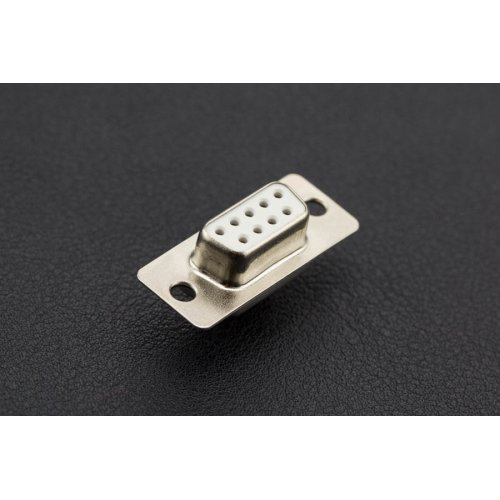

This is quality DB9 female / male Connector that with solder tail package.  DB9 connector is widely used for serial communication RS232, RS485 and RS422 interface.

RS232 DB9 Pin out Diagram

RS-232 Maximum Cable Length

The maximum cable length for RS-232 is 50ft, but in practise depends on baud rate, cable specific capacitance and ambient noise. The table below contains some rules-of-thumb from experiments done by Texas Instruments years ago.

Baud rateMaximum range / cable length
1920050ft
9600500ft
48001000ft

Package Includes:

  • 1 x DB9 Male / Female Connector For RS232/RS422/RS485

Write a review

Please login or register to review

DB9 Male / Female Connector For RS232/RS422/RS485

  • Brand: DFRobot
  • Product Code:DFR-DB9-Male-Female-Connector
  • Reward Points:1
  • Availability:In Stock
  • रo 28.00
  • रo 24.00

  • Price in reward points:28

  • 500 or more रo 27.00
  • 5000 or more रo 26.00
