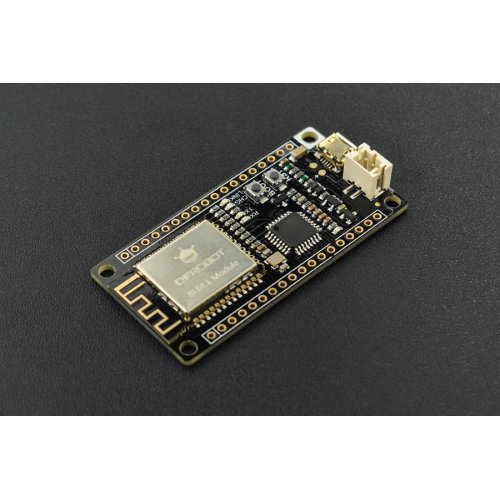

FireBeetle Board-328P with BLE4.1 Overview

DFRobot FireBeetle series are low power consumption microcontrollers designed for Internet of Things (IoT) development. This Bluetooth controller combines Bluetooth Low Energy 4.1 with Arduino controller, offering functions similar to the former Bluno series but with lower power consumption. You may also check the Bluetooth microcontroller selection guide to get more information.

FireBeetle BLE 4.1 is compatible with the Bluno series (BLE 4.0) and performs much better. FireBeetle Board-328P with BLE4.1 is equipped with a more stable DIALOG Bluetooth 4.1 chip, supporting a maximum 4 Kbyte/s transmission rate and low power consumption (25 uA POWER DOWN). It can be directly applied to low power consumption application such as wearable and intelligent tools and so on.

It also supports bluetooth 4.1 multiple devices, KISS connections (approach connections) and is compatible with the Bluno series. Its connection can be realized by holding the host BOOT and moving to the target peripheral device.
Arduino GSM Module Poultry Temperature Project

Features:

• Support Arduino IDE program
• Support BLE 4.1 central and peripheral switch
• Support Bluetooth serial port data transmit
• Support Bluetooth peer to peer (P2P) wireless programming
• Support Bluetooth 4.1 multiple device cascade (maximum:4)
• Support Arduino Bluetooth library (support multiple Bluetooth connections)
• Support low power consumption Bluetooth (standby current: 25 uA; enabled interrupt current: 70 uA)
• Double interruption to wake up:
• BLE4.1 awake Atmage328P by D2 (high level awake)
• Atmage328P awake BLE4.1 by D3 (low level awake)
• Support KISS connection (approach connection)
• Support Bluetooth firmware update
• Support USB charge
• Support lithium battery power supply
• Equipped with status LEDs

Specifications:

• Processor: ATMEGA328P
• Bootloader: Arduino Pro or Pro Mini, ATmega328 (3.3 V, 8 MHz)
• Operating Current: 3.3 V
• VCC I/O Voltage: 3.7 V~5.5 V
• Lithium Battery Voltage: 3.7 V
• Support maximum 4 Kbyte/s transmission rate (more device, lower rate)
• Support low power consumption: 25 uA (POWER DOWN); 70 uA (enabled interruption)
• Support maximum discharge current: 600 mA (LDO-3.3V OUTPUT)
• Support maximum charge current: 400 Ma
• Digital Interfaces: 14
• Analog Interfaces: 6
• SPI: 1
• I2C: 1
• UART: 1
• LED_BUILTIN: D13

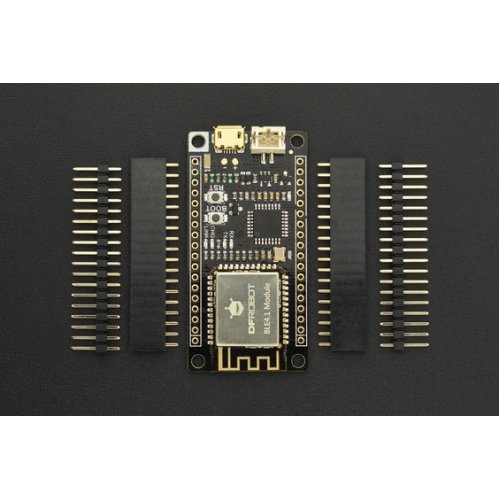

• Interface Mode: 2.54 mm (Pin/Female header), soldering free in default
• Dimension: 58 x 29 mm/ 2.28 x 1.14 inches

Documents:

• Product wiki
• More Documents

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x FireBeetle Board-328P with BLE4.1
