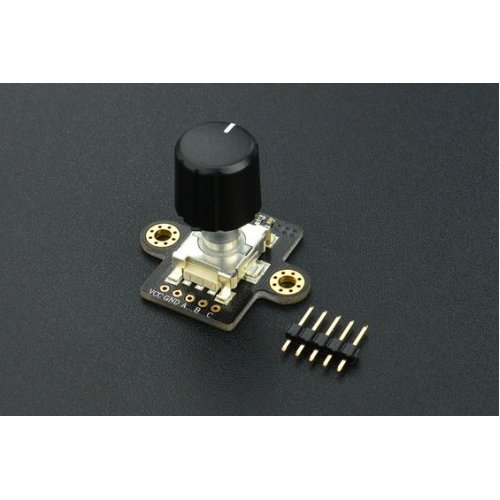

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.

Specifications:
  • Operating Voltage: 3.3 V ~ 5 V
  • Full Rotation Angle: 360 degrees (no stop point)
  • Number of pulse: 20
  • Rotation Life: 30000 ± 200 Cycles
  • Contact Resistance: ≤ 100 mΩ
  • Insulation Resistance: 100 MΩ or more
  • Oscillation: <10 ms Press
  • Working Temperature: -30 ℃ ~ +80 ℃

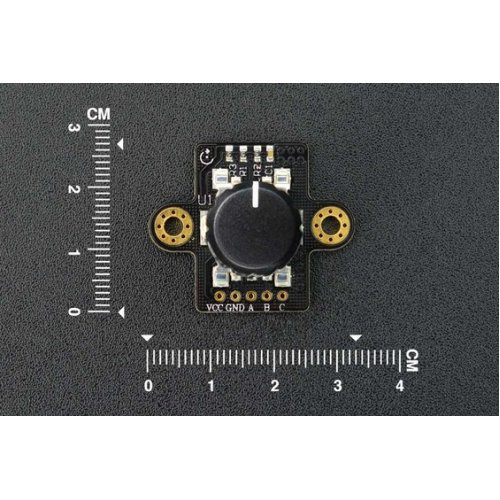

  • Module Size: 33.8 x 22.4 (mm) /1.3 x 1.1 (inches)
  • Weight: 14 g

Documents:

Warranty: 90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Fermion: EC11 Rotary Encoder Module (Breakout)

Write a review

Please login or register to review

Fermion: EC11 Rotary Encoder Module (Breakout)

  • Brand: DFRobot
  • Product Code:DFR-EC11-Rotary-Encoder
  • Reward Points:7
  • Availability:In Stock
  • रo 675.00
  • रo 239.00

  • Price in reward points:697

  • 20 or more रo 672.00
  • 40 or more रo 669.00
  • 100 or more रo 652.00
