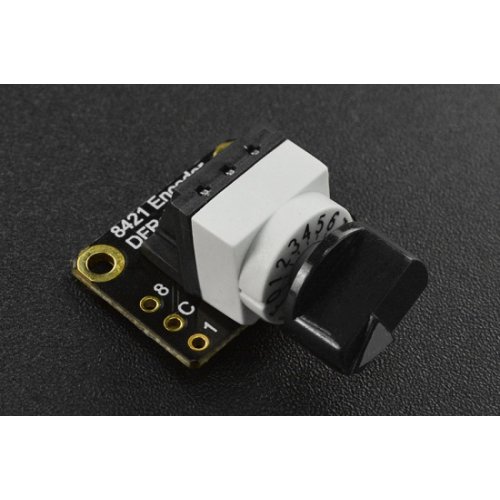

This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder. Compared to a potentiometer, it doesn’t require memory, reference point and constant counting. Whenever you need the position, you can just easily read it. In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.

Specifications:
  • Operating Current: 150mA, 42V
  • 8421 Encode: 16-gear(0-F)
  • Service Life: 10000 steps
  • Operating Temperature: -40~85℃
  • Dimension: 19x19mm/0.75x0.75”
  • Mounting Aperture: 2.0mm
  • Mounting Hole Pitch: 15x15mm
Documents:
Package Includes:
  • 1 x 8421 Encoder  Vertical / Horizontal
  • 2 x 2.54 Black Single Row Pin Header-3P

Write a review

Please login or register to review

Encoder 8421

  • Brand: DFRobot
  • Product Code:DFR-Encoder-8421
  • Reward Points:4
  • Availability:In Stock
  • रo 427.00
  • रo 371.00

  • Price in reward points:441

  • 30 or more रo 425.00
  • 65 or more रo 424.00
  • 160 or more रo 412.00
