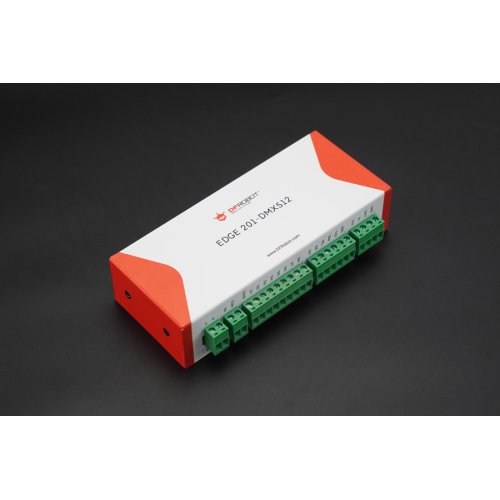

The EDGE102-DMX512 controller is an advanced lighting control system designed to manage stage, theater, and venue lighting using the DMX512 protocol. With a variety of interfaces—including RS485, I2C, and UART—this controller supports seamless connections to a range of sensors and devices, including compatibility with Arduino and ESPHome for easy integration into custom projects. It offers programmable, sensor-based automation for lighting and other stage equipment, moving beyond traditional manual control by consoles. Its dual-core architecture—combining the ESP32-S3 and a dedicated DMX512 chip—ensures high reliability, flexibility, and ease of use, making it a versatile solution for modern lighting applications. It features integrated WiFi and Bluetooth capabilities, allowing for remote control and programming.

Intelligent Automation with Sensor Integration

The EDGE102-DMX512 controller distinguishes itself by enabling automated control of lighting and stage equipment through sensor integration. While conventional DMX512 systems require manual operation through a control console, this controller allows for the connection of infrared sensors, sound level meters, and laser sensors, triggering lighting effects automatically based on environmental inputs. With 8 optically isolated industrial switch inputs ensuring compatibility with various PNP sensor types, it enhances efficiency and reduces the need for constant human supervision in environments like stages and commercial spaces.

DMX512 lighting control system Programming Controller with 8 optically isolated industrial switch inputs

8 optically isolated industrial switch inputs

Dual-Core Architecture for Stability and Wireless Control

The lighting programming controller's dual-core design, featuring the ESP32-S3 and a dedicated DMX512 processing chip, ensures robust performance. The ESP32-S3 core supports WiFi and Bluetooth, enabling remote control and user programming through wireless networks. This architecture simplifies programming, making the setup of complex lighting systems more accessible while ensuring seamless communication with connected devices. The ability to wirelessly program through interfaces like Arduino enhances operational flexibility and user convenience.

The ESP32-S3 core supports WiFi and Bluetooth

Supports WiFi and Bluetooth

Versatile Peripheral Support and Flexible Integration

Equipped with a wide range of peripheral interfaces, including RS485, I2C, and UART ports along with GPIO pins, the EDGE102-DMX512 controller can connect to various sensors, actuators, and lighting devices. This versatility enables the creation of custom interactive lighting solutions for diverse environments, such as stage shows, parties, and large-scale lighting installations in public venues. The RS485 port’s support for both master and slave modes allows flexible communication with other devices, while the I2C and UART interfaces enhance compatibility with open-source sensors and hardware.

RS485, I2C, and UART ports along with GPIO pins

Features:

  • Standard DMX512 Protocol and Interfaces: Compatible with a wide range of DMX512 drivers and lighting fixtures, ensuring seamless integration into existing systems.
  • 8 Optically Isolated Switch Inputs: Directly connects to standard PNP switch sensors, enhancing safety and reliability in industrial environments.
  • Multiple Communication Ports: Includes 1 Relay Output, 1 RS485 Port (supporting master and slave modes), 1 I2C Interface, 1 UART Port, and 2 GPIO Ports, allowing versatile connections with various devices and sensors.
  • Built-in Clock Chip: Enables the design of time-based functions and effects, accommodating special events and holiday lighting displays.
  • ESP32-S3 Main Chip: Provides WiFi and Bluetooth support, ensuring easy and rapid programming through platforms such as Arduino.
  • Dedicated DMX512 Protocol Chip: Guarantees reliable program operation, enhancing the overall stability of the system.
  • Metal Enclosure: Designed for durability with options for ear mount or rail mount installations.

Specifications:

System Parameters

  • Power Supply Voltage: 12V ~ 24V
  • Power Supply Interface: DC2.1 / Terminal Blocks
  • Main Core Chip: ESP32-S3
  • Program Download Interface: USB-Type C
  • RTC Error: ±3 seconds in 30 days
  • RTC Backup Power: Maintains clock for 12 hours after power failure
  • Reset Button: 1
  • Input and Output Interfaces

DMX512 Output Interface: Three-pin XLR female connector

  • Relay Output Interface: 1
  • Optically Isolated Digital Input Interfaces: 8
  • Polarity Support for Digital Sensors: PNP
  • I2C Interface: 1
  • UART Interface: 1
  • GPIO: 2
  • BLINK-LED: 1
  • Physical Parameters

Mounting Options: Rail mount, ear mount

  • Enclosure Material: Alloy steel
  • Product Dimensions: 158mm × 83mm × 37mm

Applications:

  • Stage and Theater Lighting: Perfect for dynamic lighting setups in performances, providing seamless integration with stage equipment.
  • Public Venue Lighting: Suitable for city squares, parks, and shopping malls, enhancing the ambiance through automated lighting effects.
  • Commercial Lighting: Effective for lighting control in malls and restaurants, offering customizable solutions for various commercial settings.
  • Home Lighting Control: Ideal for managing indoor and outdoor lighting systems, allowing for automated and sensor-based control.

Documentations:

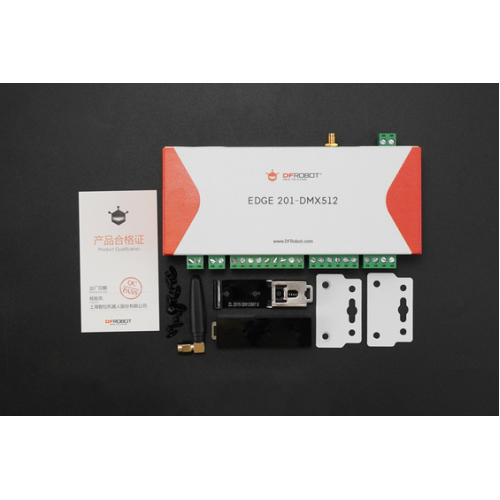

Package Includes:

  • 1 x DMX512 programmable controller
  • 1 x WIFI/Bluetooth antenna
  • 2 x 35mm DIN rail clips
  • 2 x Mounting brackets
  • 1 x Mounting screws pack


Write a review

Please login or register to review

DMX512 Lighting Programming Controller for Arduino and ESPHome

  • Brand: DFRobot
  • Product Code:NR-DFR-DMX512-Lighting-Programming
  • Reward Points:64
  • Availability:In Stock
  • रo 6,199.00
  • रo 5,379.00

  • Price in reward points:6404

  • 2 or more रo 6,174.00
  • 4 or more रo 6,148.00
  • 11 or more रo 5,986.00
