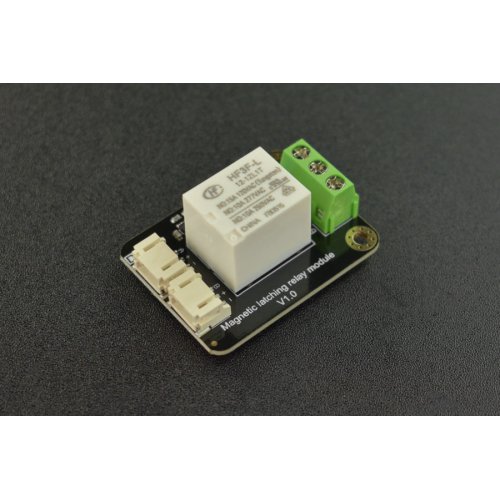

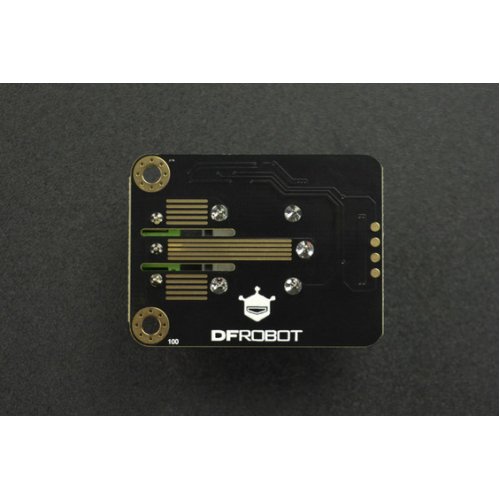

A Magnetic latching relay is a new type of relay developed in recent years. Unlike normal relay, the ON or OFF state of magnetic latching relay depends on the action of a permanent magnet, and the state switching is triggered by a certain width of pulse electric signal. Once set or reset, the relay remains in the original state even when powered off.

• The magnetic latching relay features low power, steady performance, long service life, and low-temperature rise. It is perfect for applications requiring low power and high stability.

• This DFRobot magnetic latching relay based on a special driver chip is small and easy to use, and can be used to remake home appliances or lighting controls, like smart electricity meters/lighting/sockets/switches, and so on.

                                     Connection Diagram

Features:

• Low power consumption, 2.6mw-3.65mw
• Trigger Pulse Width: 2ms
• Holding function
• 3.3V & 5V supported

Specification:

• Signal Level: 3.3V, 5V
• Power Voltage: 3.3V-5V DC
• Trigger Pulse Width: 2ms
• Static Current: 0.73mA - 0.8mA(@3.3V-5V）
• Coil Operating Current: 137mA(3.3V), 93mA(5V)
• Contact Resistance: ≤100mΩ (1A 6V DC)
• Contact Material: AgSnO2
• Contact Load: 10A 277V AC (Resistive), 15A 120V AC (Incandescent lamp)
• Max Switching Voltage: 277V AC/30V DC
• Max Switching Current: 10A
• Max Switching Power: 2770VA/300W
• Coil Rated Power: 0.4W
• Relay Action Time(@Rated Voltage): ≤8ms
• Relay Reset Time(@Rated Voltage): ≤5ms
• Operating Humidity Range: 5%-85%RH
• Operating Temperature Range: -40℃-85℃
• Product Dimension(Package Not Included): 42×32mm/1.65×1.26”

Applications:

• Remaking home appliances
• Lighting controls
• Smart electricity meters
• Smart lighting
• Smart sockets
• Smart switches

Documentation:

• Product wiki

Package Includes:

• 1 x Magnetic Latching Relay

• 2 x 3Pin Gravity Wire
