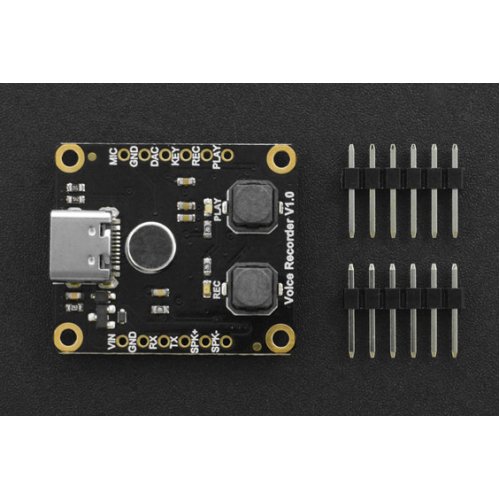

The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.

Features:

Support about 40 minutes voice recording
Support multi-segment voice recording
Voice recording/playing via on-board buttons
On-board power amplifier
Support analog U-disk

Specifications:

Operating Voltage: 3.3~5V
Operating Current: >10mA
Storage: 16MB
Sampling Rate: 48kbs
Communication: UART

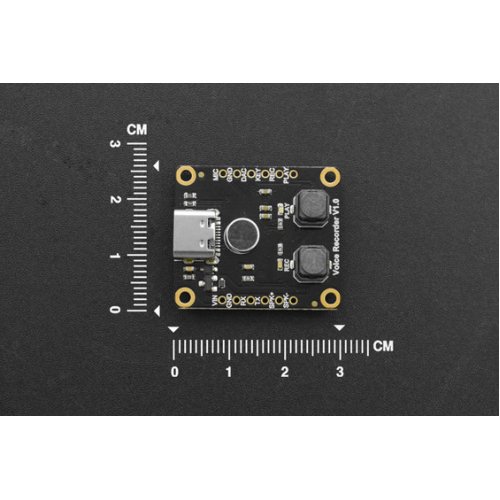

Dimension: 26x30mm/1.02x1.18”

Applications:

DIY Plush Toys
Handmade Personalized Gift
Event Voice Memo

Documents:

Product wiki

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Voice Recorder Module-Breakout
2 x 2.54-6P Single-Row-Pin Black

Electrical Specifications
Minimum Operating Voltage	3.3V
Maximum Operating Voltage	5V
Minimum Operating Current	10mA
Physical Attributes
Dimensions	26x30mm/1.02x1.18”
Additional Information
Warranty	90 days
