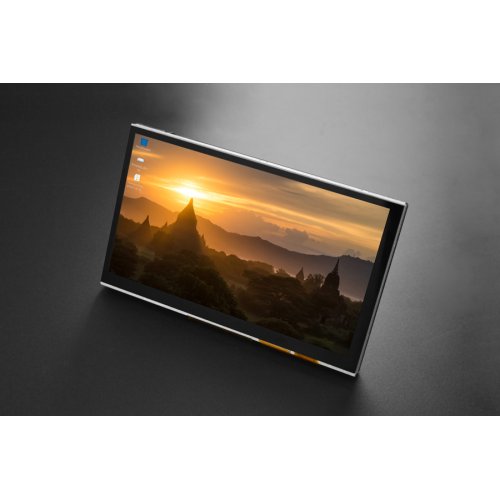

This is a 7" Raspberry Pi LCD touchscreen with 800*480 resolution and 154.8 x 85.92mm display area. The product supports the Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points. The special holes design on the back of the screen is convenient to directly install the Raspberry Pi in the product.
Features:
- Capacitive Touchscreen, Support 5 TouchPoints.
- Raspberry DSI Direct Driver
Specifications:
- Operating Voltage: 3.3V (Supplied by Raspberry Pi Display Interface)
- Maximum Operating Current: 450mA
- Resolution: 800*480
- Video Interface: Raspberry Pi DSI
- Number of Touch Points: 5
- Viewing Angle: 60°/70°/70°/70°
- RGB888-16 Mega True Color
- Refresh Frequency: 60Hz
- Luminous Efficiency: 280 cd/m2
- Operating Temperature: -20℃~70℃

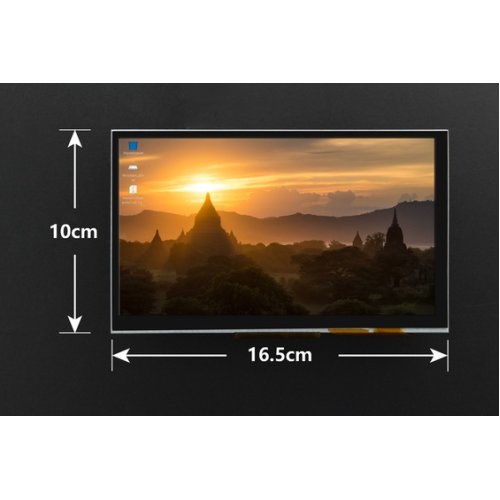

- Dimension: 165mm×100mm / 6.50" × 3.94"
- Mounting Hole Size: M2.5
- Outer Mounting Hole Position: 155mm × 80mm/ 6.10" × 3.15"
- Inner Mounting Hole Position: 58mm x 49mm/ 2.28" x 1.93"
Compatibility:
Documents:

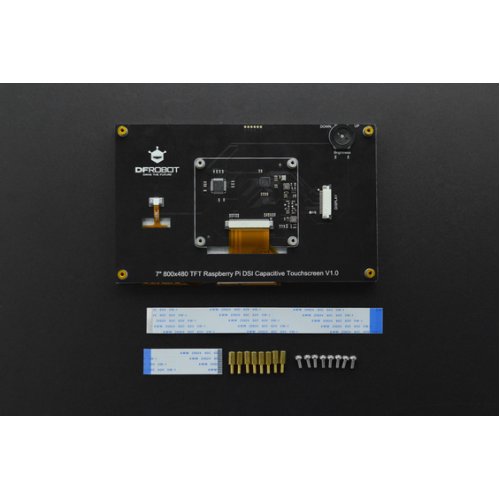

Package Includes:
- 1 x 7" 800x480 TFT Raspberry Pi DSI Capacitive Touchscreen (V1.0)
- 8 x M2.5*8+6 Hexagonal Copper Column Single-Head
- 8 x M2.5*6 DK4.9 Machine Screws
- 1 x FPC Reverse Direction Cable 150mm
- 1 x FPC Reverse Direction Cable 50mm
7 inch 800x480 TFT DSI Capacitive Touchscreen for Raspberry Pi (V1.0)
- Brand: DFRobot
- Product Code:DFR-TFT-DSI-7inch
- Reward Points:55
- Availability:In Stock
- रo 5,359.00
-
रo 4,650.00
- Price in reward points:5536
-
- 3 or more रo 5,337.00
- 5 or more रo 5,315.00
- 15 or more रo 5,174.00
