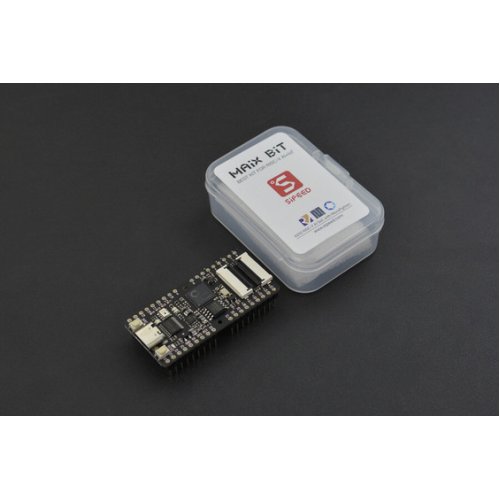

Maix Bit AI development board adopts AI chip K210 of RISC-V kernel. K210 comes with dual-core processor chip with independent FPU, 64 bits CPU bit width, 8 MB on-chip SRAM, 400 adjustable nominal frequency, and double precision FPU supporting multiplication, division, and square root operation.

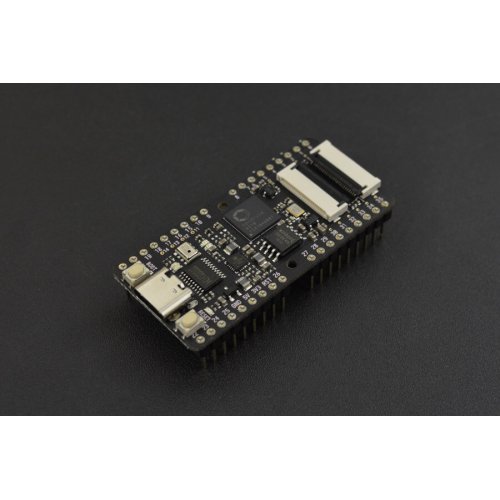

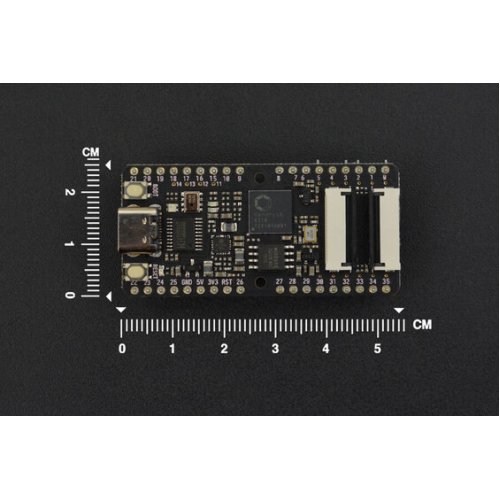

On the 53.3mm x 25.4mm board, Maix Bit AI development board integrates on-board 128 Mbit high speed and large-capacity Flash, high speed USB to Serial port chip CH552, RGB LED, MEMS microphone, 24pin DVP camera interface, 24 pin 8bit MCU LCD interface. The product features RISC frame, high performance, low price, AI, and MicroPython support.

MaixPy firmware is micropython firmware, which makes it easy for everyone to use AI algorithms and the operation of conventional microcontrollers; MaixPy firmware is compatible with most APIs of OpenMV! Buying the MAIX development board is equivalent to having an OpenMV development board that is three times the price of the MAIX development board! And the measured power of the ordinary algorithm is 2~3 times of the original STM32H7 version! The power of the AI algorithm is even more than 1000 times that of the STM32H7 version of openmv! That's right, it's 1000 times!

Features:

Controller Chip: K210
Chip Kernel: dual-core RISC-V 64 bit IMAFDC
Main Frequency: nominal 400M, can be overclocked to 600M
Memory: 6MB general purpose memory+2MB AI memory
Flash: 16MB
Support MicroPython
Compatible with most OpenMV algorithms
Support Neural network algorithm: encapsulates the nnn class of mpy
Neural network algorithm speed: hundreds of GOPS (thousands of times STM32)
Face detection speed: conventional algorithms 6 frames
OVGA, RGB image: AI acceleration can reach more than 60 frames
Debugging support: UART and JTAG interface
GPIO Interface: all GPIOs connected to header 2.54mm
DVP Camera Connector: 24P 0.5mm FPC connector (compatible with OV2640, OV7740, OV5640, etc. )
LCD Connector: 8 bit MCU LCD 24P 0.5mm FPC connector
On-board MEMS Microphone
On-board TF Card Slot
