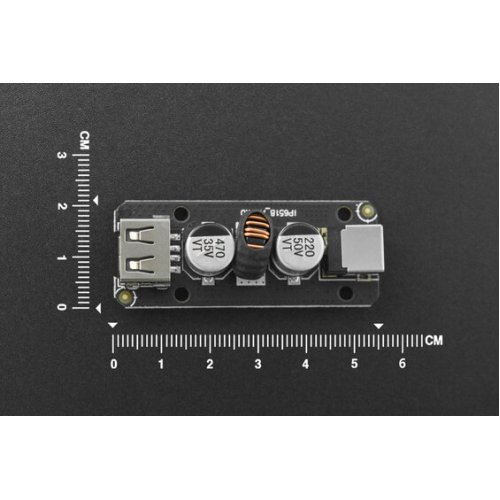

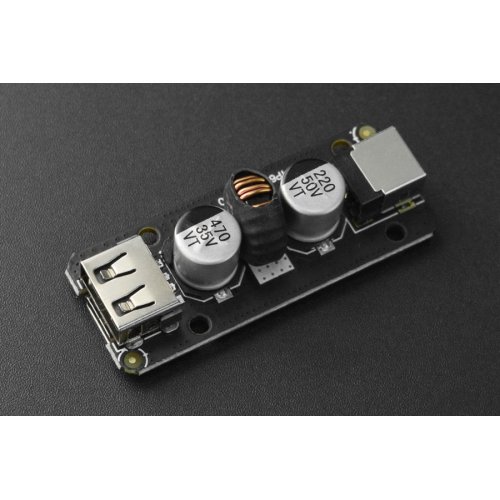

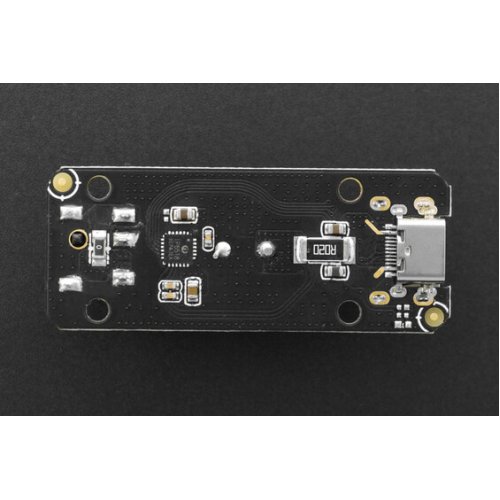

This fast-charging module comes with both USB and Type-C ports, supporting 10.5-32V voltage input and 5V/3A output, and multiple charging protocols. With steady output, this Fast Charge Module is able to work for a long time without voltage shift. It can be suitable for projects like mobile phone fast charging, Car charging retrofit, solar charger, DIY power source, etc.

Features:
  • Dual output ports
  • Support for multiple fast-charging protocols
  • Can be used as a charging module or power supply
Specifications:
  • Input Voltage Range: 10.5V-32V
  • Output Voltage Range: 3-20V Auto-adjust based on fast-charging protocol (Default output 5V, the input should be 2V higher than the output)
  • Output Current: 0-3A
  • Input Port: DC5.5 x 2.1mm
  • Output Port: common USB+Type-C
  • Chip Protection: input overvoltage, undervoltage protection, output overcurrent, overvoltage, undervoltage, short circuit protection
  • Supported Fast Charging Protocol:
    • BC1.2, Apple, Samsung
    • Qualcomm QC2.0 and 3.0
    • MTK PE+1.1 and MTK PF+2.0
    • Huawei fast charging protocol FCP/SCP
    • Samsung fast charging protocol AFC
    • supports spreadtrum fast charge protocol SFCP
Warranty: 90 days
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x DC-DC Fast Charge Module 10.5~32V to 5V3A

Write a review

Please login or register to review

DC-DC Fast Charge Module 10.5~32V to 5V3A

  • Brand: DFRobot
  • Product Code:DFR-DC-Charge-Module-32V
  • Reward Points:7
  • Availability:In Stock
  • रo 669.00
  • रo 580.00

  • Price in reward points:691

  • 22 or more रo 666.00
  • 43 or more रo 663.00
  • 109 or more रo 646.00
