Are you still distressed that industrial sensors can't be used on the Arduino? You may need to get a converter just like this!

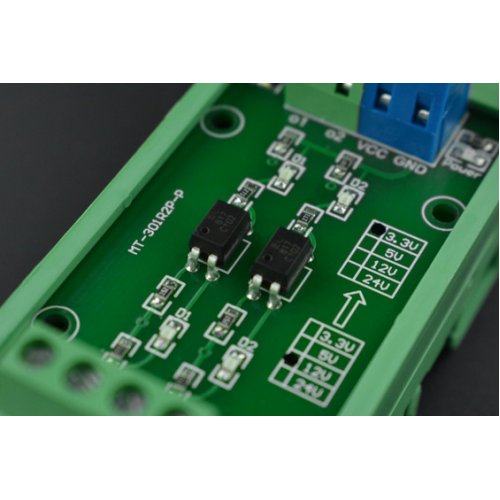

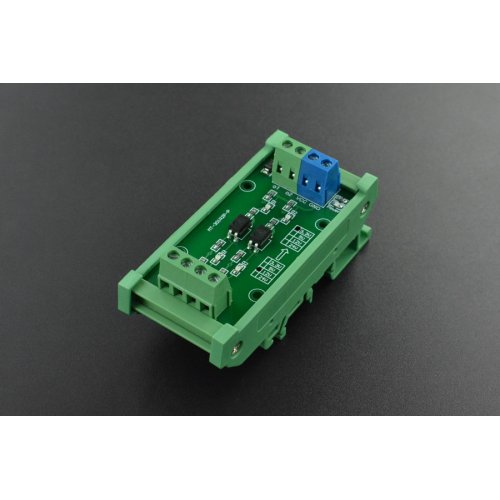

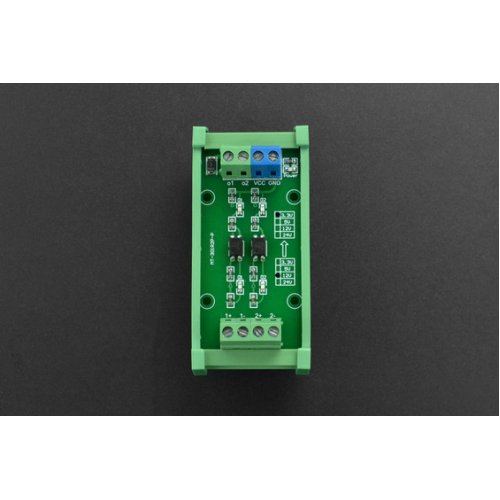

This 12V to 3.3V/5V level converter module with 2-channel optocoupler isolation features common anode / common cathode / differential signal inputs. The level shifter translates signal level from 12V to 3.3V/5V and offers PNP output (NPN to PNP available). It can be used for signal isolation, PLC signal level conversion, NPN to PNP signal conversion, polarity conversion, signal level voltage conversion and so on.

Features:
  • PNP Output (NPN to PNP available)
  • Output Signal Level (12V to 3.3V/5V)
  • Signal Photoelectric Isolation
Specifications:
  • Input Channel: 2-channel Optocoupler Isolation
  • Output Signal: PNP Output (NPN to PNP available)
  • Sensor Input Voltage: 12V
  • Module Supply Voltage: 3.3V/5V
  • Input Signal Level: 12V
  • Output Signal Level: 3.3V/5V
  • Output Current: no more than 50mA for each channel
  • Indicator: SMD LED
  • Size of Bare Board: 38 x 72 x 19 mm/1.50 x 2.83 x 0.75”
  • Size of Converter with Shell: 40 x 87 x 39 mm/1.57 x 3.43 x 1.54”
  • Size of Screw Hole: 3 mm
  • Installation Specification: With Shell (Fit on standard rails)

Applications:

  • Signal isolation
  • PLC signal level conversion
  • NPN to PNP signal conversion
  • Polarity conversion
  • Signal level voltage conversion

Documents:

Warranty: 90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x 2-Channel Level Converter (12V to 3.3V/5V)

Write a review

Please login or register to review

2-Channel Level Converter (12V to 3.3V/5V)

  • Brand: DFRobot
  • Product Code:DFR-2-Channel-Level-Converter
  • Reward Points:7
  • Availability:In Stock
  • रo 675.00
  • रo 586.00

  • Price in reward points:697

  • 20 or more रo 672.00
  • 40 or more रo 669.00
  • 100 or more रo 652.00
