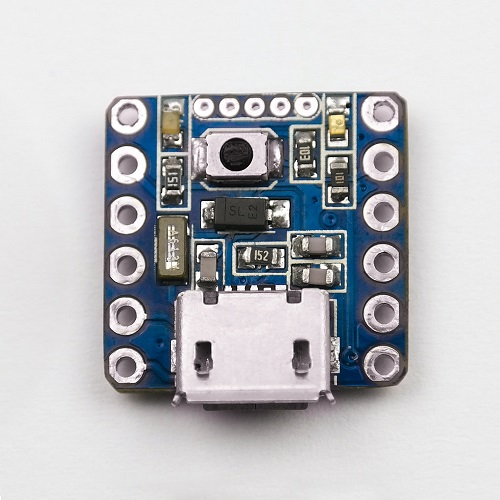

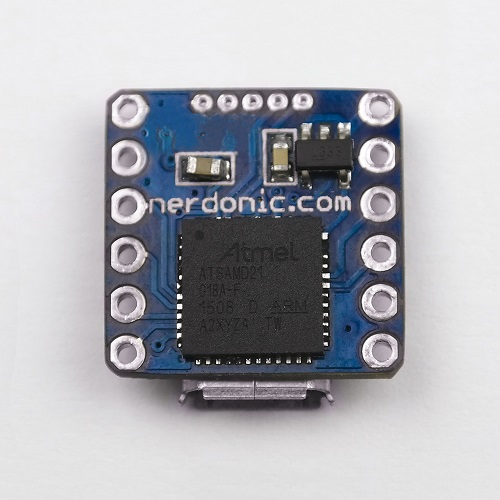

The Exen Mini from Nerdonic is a tiny 32-bit microcontroller compatible with arduino and breadboard development. It's not just small, it's powerful too running at 48MHz clock with 256KB ROM, 32KB RAM and 8 pins filled with functionality.

The Exen X1 is tiny

Measuring just 14.9mm2 at 0.95 grams, the Exen Mini is small as well as powerful. For size comparison is a UK 5 Pence coin (Equivalent size to a US Dime).

Arduino & Breadboard Compatible

The Exen Mini is fully compatible with�breadboard development and the Arduino IDE and comes with the Arduino Zero bootloader pre-flashed.

Onboard Programmable LED

Show your code status, an error or make it flash when each code loop is complete, the onboard programmable led can be programmed however you like.

Exen Mini Pin-out

Specifications

Microcontroller	Cortex M0+
Bootloader	Arduino Zero Bootloader Pre-loaded
Input Voltage	Power Pin 1 = 3.3-20v (3.3-12v recommended for heavy load) Power Pin 2 = 3.3v Micro USB = 5v
Current Draw	Exen Mini = ~10mA
Clock	48MHz
Flash Memory (ROM)	256KB
SRAM	32KB
I/O Pin Limits	3.3v, 7mA
Digital I/O Pins	8
PWM Pins	8
Analog (ADC) Pins	6
Serial (RX/TX) Pins	2 (1x RX / 1x TX)
I2C (SDA/SCL) Pins	2 (1x SDA / 1x SCL)
Reset Pins	1
Dimensions	14.9 x 14.9 x 4.4mm
Weight	0.95 grams
Programming	Micro USB Port SWD Header
Connections	Micro USB 2.54mm Pin Headers SWD Header
