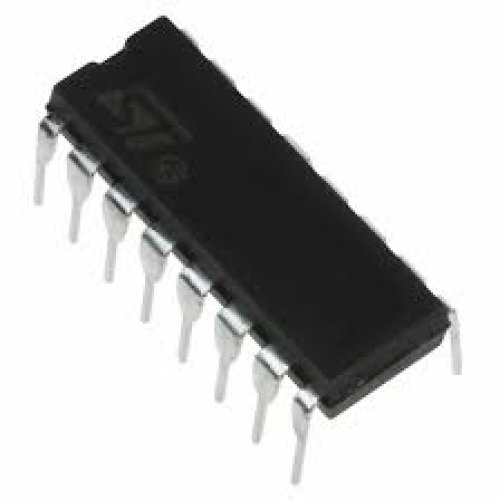

HCF4029B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. HCF4029B consists of a four stage binary or BCD-decade up/down counter with provisions for look ahead carry in both counting modes.
Features:
- Medium speed operation : 8mhz (typ.) At cl = 50pf and vdd - vss = 10v
- Multi-package parallel clocking for synchronous high speed
- Output response or ripple clocking for slow clock input rise and fall times "preset enable" and individual "jam" inputs provided
- Binary or decade up/down counting
- Bcd outputs in decade mode
- Quiescent current specif. Up to 20v
- Standardized symmetrical output characteristics
- Input leakage current
- Ii= 100na (max) at vdd = 18v ta = 25°c
Application:
- Programmable Binary and Decade Counting/Frequency
- Synthesizers-BCD Output
- Analog to Digital and Digital to Analog Conversion
- Up/Down Binary Counting
- Difference Counting
- Magnitude and Sign Generation
- Up/Down Decade Counting
HCF4029B - Up/Down Counter
- Product Code:SP-IC-HCF4029B-Up-Down-Counter
- Reward Points:1
- Availability:In Stock
-
रo 20.00
- Price in reward points:20
Tags: HCF4029B, Up, Down, Counter, Gate, logic, digital, CMOS
