Supercapacitors have characteristics ranging from traditional capacitors and batteries. As a result, supercapacitors can be used like a secondary battery when applied in a DC circuit. These devices are best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
FG Series Supercapacitors, also known as Electric DoubleLayer Capacitors (EDLCs), are intended for high energy
storage applications.
Features:
- Wide range of temperature from −25°C to +70°C (FG and FGH types) and −40°C to +85°C (FGR type)
- Maintenance free
- Maximum operating voltages of 3.5 VDC and 5.5 VDC
- Highly reliable against liquid leakage
- Lead-free and RoHS compliant
Specifications:

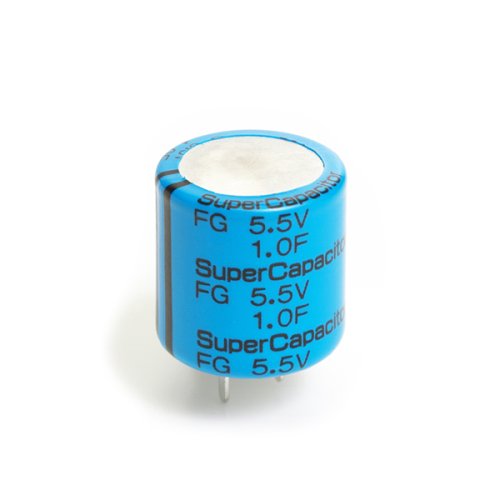

FGR0H105ZF - 1F:
| Capacitance | 1F |
| Capacitance Tolerance | -20/+80% |
| Voltage DC | 5.5 VDC |
| Temperature Range | -40/+85°C |
| Rated Temperature | 85°C |
| Resistance | 65000 mOhms (1kHz) |
| Discharge Current | 1.5 mAmps (30 Minutes After Charging) |

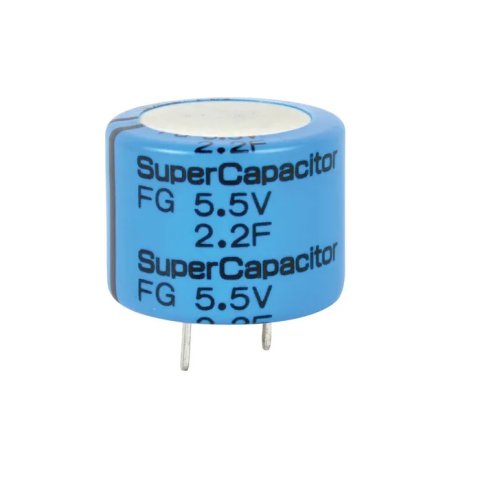

FGR0H225ZF - 2.2F:
| Capacitance | 2.2F |
| Capacitance Tolerance | -20/+80% |
| Voltage DC | 5.5 VDC |
| Temperature Range | -40/+85°C |
| Rated Temperature | 85°C |
| Resistance | 35000 mOhms (1kHz) |
| Discharge Current | 3.3 mAmps (30 Minutes After Charging) |
Dimensions:
FGR0H105ZF - 1F:
| D | 16.5mm +/-0.5mm |
| L | 19mm MAX |
| S | 5.08mm +/-0.5mm |
| LL Negative | 3mm MIN |
| LL Positive | 2.7mm MIN |
| LT1 | 0.4mm +/-0.1mm |
| LT2 | 1.2mm +/-0.1mm |
FGR0H225ZF - 2.2F:
| D | 21.5mm +/-0.5mm |
| L | 19mm MAX |
| S | 7.62mm +/-0.5mm |
| LL Negative | 3.3mm MIN |
| LL Positive | 3mm MIN |
| LT1 | 0.6mm +/-0.1mm |
| LT2 | 1.2mm +/-0.1mm |
Documents:
Package Includes:
- 1 x Double Layer Super Capacitor FGR0H225ZF / FGR0H105ZF - 5.5 VDC, -40/+85°C
Electric Double Layer Super Capacitor FGR0H225ZF / FGR0H105ZF - 5.5 VDC, -40/+85°C
- Product Code:ARO-FG-SuperCap
- Reward Points:4
- Availability:In Stock
-
रo 448.00
- Price in reward points:448
-
- 30 or more रo 444.00
- 60 or more रo 440.00
- 145 or more रo 437.00
- 290 or more रo 433.00
