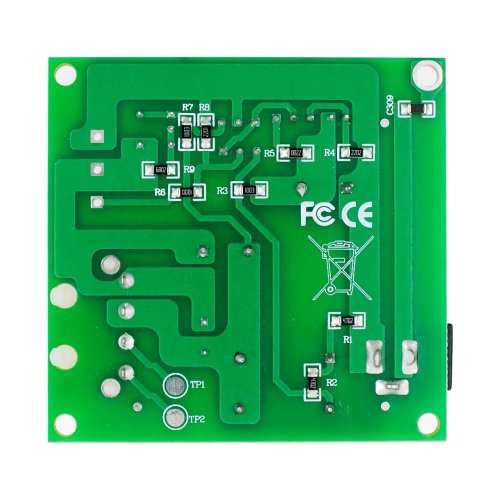

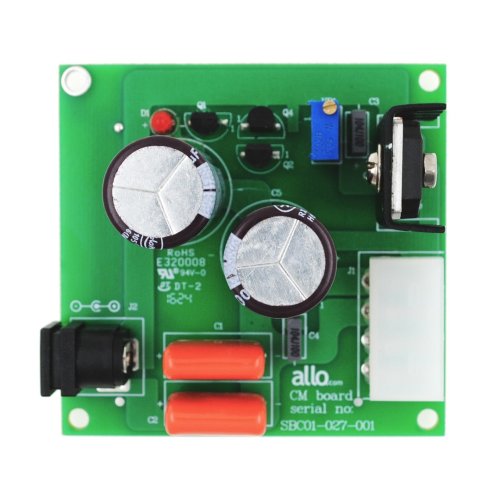

-500x500.jpg "CAPACITANCE MULTIPLIER (Stand Alone)")
A Capacitance Multiplier is designed to make a small capacitor function like a capacitor that is much, much larger.
This design reduces the output ripple/noise of any PSU to almost negligible levels (less than 5mV up to 1Mhz).
Note this this is not a voltage regulator. The output voltage will track the input voltage (- dropout voltage).
This circuit is very suitable for class A and class D amplifiers or even to feed clean power to your SBCs.
Features
- Designed to make a small capacitor function like a capacitor that is much, much larger
- Reduces the output ripple/noise of any PSU to almost negligible levels (less than 5mV up to 1Mhz)
- The output voltage will track the input voltage (- dropout voltage)
- Suitable for class A and class D amplifiers
- Suitable to feed clean power to your SBCs
- Dropout voltage is trim pot selectable
| Max / Min | 30V IN / MIN 6V IN |
|---|---|
| Dropout Voltage | Trim pot selectable from 0-3V (dropout voltage should always be higher than ripple / noise of PSU) |
| Factory Default | 0.5V |
| Power Dissipation | Dropout Voltage x A used = W of heat |
| PSRR | 70db |
| Suitability | This circuit is very suitable for class A and class D amplifiers or even to feed clean power to your SBCs |
| Board Weight | 120g |
See how we clean the power, by reviewing these documents:
CAPACITANCE MULTIPLIER (Stand Alone)
- Brand: Allo
- Product Code:Allo-Capacitance-Multiplier
- Reward Points:10
- Availability:Order now and get it in 07 days
- रo 1,050.00
-
रo 738.00
- Price in reward points:1050
