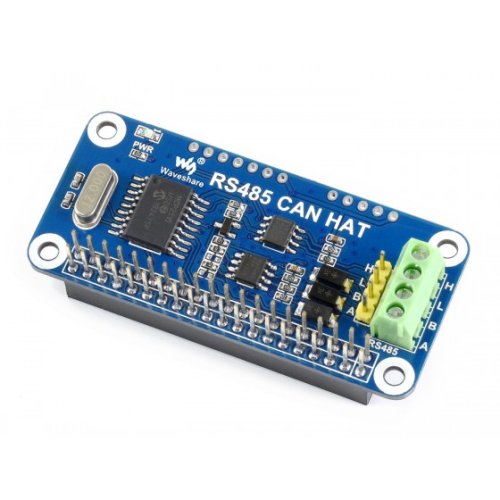

The RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning-proof & anti-electrostatic
- Reserved control pins, allows to work with other control boards
- Comes with development resources and manual (examples in wiringPi/python)
Specifications:
- Operating voltage: 3.3V
- CAN controller: MCP2515
- CAN transceiver: SN65HVD230
- 485 transceiver: SP3485
- Dimension: 65mm x 30mm
- Mounting hole size: 3.0mm
Pinouts:
| PIN | RASPBERRY PI (BCM) | DESCRIPTION |
| 3V3 | 3V3 | 3.3V Power |
| GND | GND | Ground |
| SCK | P11 / SCLK | SPI clock input |
| MOSI | P10 / MOSI | SPI data input |
| MISO | P9 / MISO | SPI data output |
| CS | P8 / CE0 | SPI chip selection |
| INT | P25 | Interrupt |
| RXD | P15 / RXD | RS485 UART receive |
| TXD | P14 / TXD | RS485 UART transmit |
| RSE | P4 | RS485 TX/RX control (auto control by default, some soldering is required to enable manual control), high for TX, low for RX |
Development Resources:
Package Includes:
- 1 x RS485 CAN HAT for Raspberry Pi
Waveshare 14882 RS485 CAN HAT for Raspberry Pi
- Brand: Waveshare Electronics
- Product Code:WaveS-Can-HAT-RS485
- Reward Points:9
- Availability:In Stock
- रo 922.00
-
रo 775.00
- Price in reward points:922
-
- 10 or more रo 855.00
- 15 or more रo 849.00
- 35 or more रo 842.00
- 50 or more रo 810.00
- 100 or more रo 790.00
- 180 or more रo 783.00
