The Vista HD is designed for small drones and weighs low. Can be used with DJI FPV goggles. The VISTA system allow up to eight drones to fly simultaneously.Each operator has exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience. Users can wirelessly connect their Vista Kit to the DJI FPV Remote Controller without having purchase additional receivers. This reduces flight preperation time significantly.

Specifications:

Weight:
- Vista Kit (camera included): 26g
- Antenna: 2.5g
Dimensions:
- Vista: 30x29x13mm
- Camera: 19x19x20mm
- Coaxial Cable: 120mm
Operating Frequency: 5.725 ~ 5.850GHz
Transmitter Power (EIRP):
- FCC/SRRC/MIC: <30dBm
- CE: <14dBm
Max. Tranmission Distance: FCC/SRRC: 4km; CE: 0.7km
I/O Interface: USB-C, IPEX, 3-in-1port
Supported Flight control System: F3,F4,F7
Operating temperature: 0 to 40degree celcius
Input Power: 7.4 - 26.4V
Power Input: 25mW/200mW/500mW/700mW
Hardware Included: Visa/Nebula micro/coaxial
Goggles: Work with DJI goggles
Camera:
- Sensor: 1/3" CMOS;
- Lens: 2.1mm
- Shutter: Rolling Shutter
- FOV: 150degree
- Wide Power Input: DC 5~36V
- Weight: 5.8g
Analog specifications:
- Resolution: 1000TVL
- Latensy: 4ms
- WDR: Super WDR
- OSD: Support
- Menu: Support
- Day/Night: Color/ B and W
- Image: 16:9 and 4:3 (switchable)
- TV System: NTSC and PAL (switchable)
Digital specifications:
- Resolution: 720p/60fps
- Latensy: 32ms
- Image: 16:9

Warranty:

Package Includes:

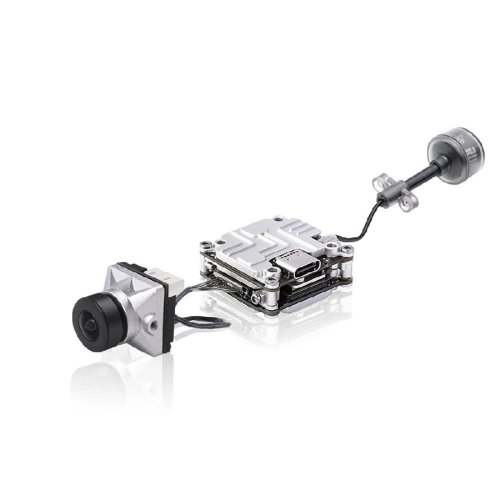

1 x Vista Kit (Vista/Camera/coaxial-cable/antenna)
1 x 5D-OSD menu board
3 x FPV silicone cable
1 x Screw set
1 x Instruction Manual

Sensor Specifications
Sensor type	CMOS
Sensor size	1/3"
Shutter	Rolling Shutter
Resolution	1000TVL 720p/60fps
Aspect Ratio	16:9 and 4:3 (switchable)
Lens Specifications
Focal Length	2.1mm
Field of View	150degree
Frequency
Frequency Range	5.725 ~ 5.850GHz
Electrical Specifications
Input Power	7.4 - 26.4V
Maximum Operating Temperature	0 to 40degree celcius
Physical Attributes
Weight	Vista Kit (camera included): 26g Antenna: 2.5g
Dimensions	Vista: 30x29x13mm Camera: 19x19x20mm Coaxial Cable: 120mm
Additional Information
Warranty
