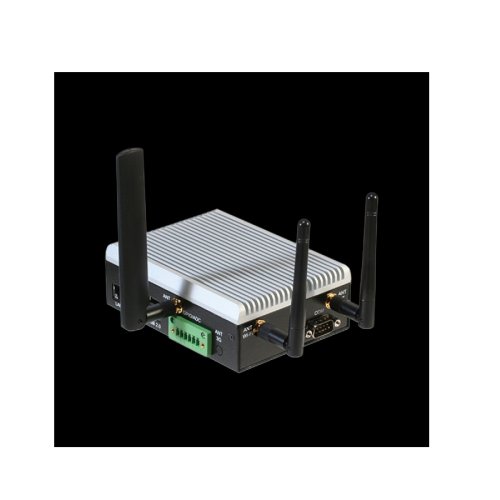

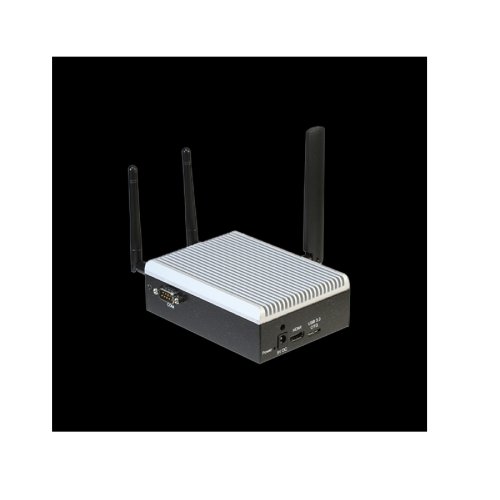

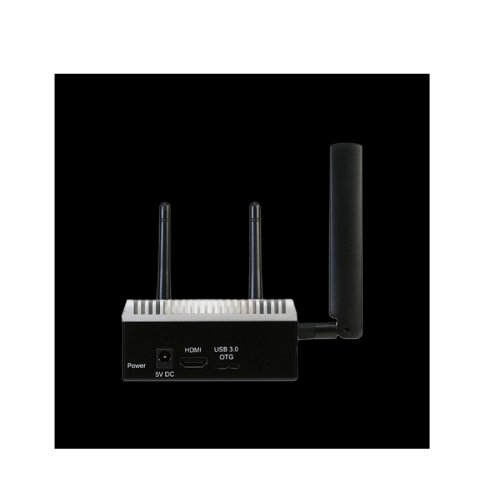

UP Automation Edge Computing can be used as an automation gateway running on OPC UA Server, together with UP Xtreme Edge Compute Enabling Kit (OPC UA Client) and PLC Sensor(via RS232 Modbus), you can easily build an OPC UA application.

Specifications:

SoC	Intel Atom x5-z8350 (up to1.92 GHz)
Core	4
Graphics	Intel HD Graphics 400
FPGA	Intel FPGA Altera MAX 10
memory	2GB
eMMC	32GB
BIOS	UEFI
RTC	Yes
WAKE ON LAN (WoL)	Yes
Watchdog timer	Yes
PXE	Yes
Compatible OS	Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Power requirement	5V DC-in @ 6A 5.5/2.1mm jack
Power Supply Type	AT (default) /ATX
Power Consumption ( typical)	T.B.A
Dimension	5.12” x 3.74” x 1.74” (130mm x 95mm x 44.2mm)
MTBF ( hours)	T.B.A

Display

HDMI	1 (HDMI 1.4a)
Display Port	N/A

Input/Output

USB 2.0 type A	4
USB 3.0 Type A	1
USB 3.0 OTG Micro B	1
Serial port	2x RS-485 (optional RS-232)
HDD interface	1 x SATA 3.0
AIO/DIO	1x Analog I/O + 4x Digital I/O
SIM slot	No

Connectivity

Ethernet	1 x GbLAN ( RealTek RTL8111G-CG)
WiFi	optional WiFi 802.11 a/b/g/n/ac 2T2R (Fangtec-GWF-5M02)
Bluetooth	Bluetooth v4.0 (BLE)
LTE/4G	LTE (EMEA)
LoRa®	RisingHF 868 Mhz LoRa® radio
Cooling	passive cooling (fanless)

Environment

Operation temperature	2°F ~ 122°F (0°C ~ 50°C)
Storage temperature	-4°F ~ 158°F (-20°C ~ 70°C)
Operation Humidity	0% ~ 90% relative humidity, non-condensing
Certification	CE/FCC Class A
Radio certification	CE RED 2014/53/EU
Longevity	2024
