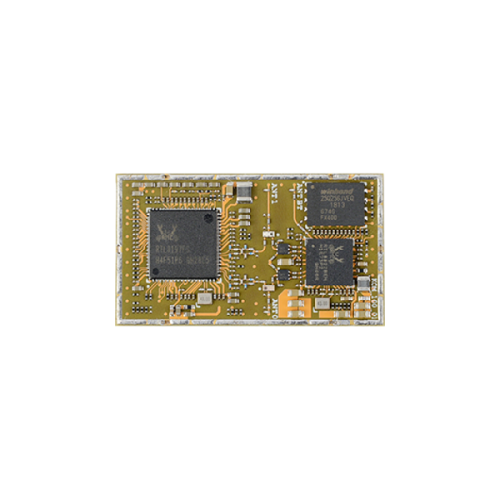

Komikan is a dual-band 802.11ac Wave2 module with BT v4.1 support. Two integrated radios (2.4 and 5GHz) can achieve up to 1.166Gbps data rates and are backed by a powerful 1GHz MIPS24Kc CPU. The module is in LGA (land grid array) form and is ideal for designs restricted by space. Komikan does not require heat-sink like other 802.11ac Wave2 modules and has low power consumption specs. It has multiple I/O interfaces to connect peripherals and comes with OpenWRT Linux operating system.

Specifications:
  • CPU : RTL8197FS (1 GHz CPU based on MIPS 24Kc core) + RTL8822BEH
  • Memory : 32 MB FLASH, 128 MB RAM
  • Frequency : 2.4 and 5 GHz concurrent
  • Max output power : 22 dBm per chain
  • Wireless standard : 802.11 a/b/g/n/ac Wave2 + BT v2.1/3.0/4.1
  • Antenna : Pin access
  • Power supply : 3.3V, max power consumption 6W
  • Available interfaces : 44 x GPIO, 2 x USB 2.0 host, 4 x UART (one for BT), RGMII, 2 x SPI, PWM, MDIO, eMMC, JTAG, 2 x I2S, PCM, 2 x I2C, P-NAND, 100 Base-T
  • Size : 37.5 by 21.3 mm

Documents:

Package Includes :

  • 1 x 8devices Komikan - Dual-band SOM

Write a review

Please login or register to review

8devices Komikan - Dual-band SOM

  • Brand: 8devices
  • Product Code:8d-Komikan
  • Reward Points:42
  • Availability:In Stock
  • रo 4,202.00

  • Price in reward points:4202

  • 3 or more रo 4,168.00
  • 7 or more रo 4,135.00
  • 15 or more रo 4,101.00
  • 35 or more रo 4,068.00
