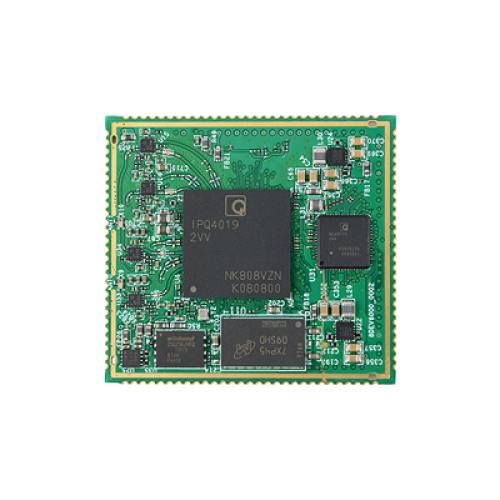

Habanero system on module (SOM) is based on an IPQ4019/IPQ4029 SoC from Qualcomm, which incorporates a powerful quad-core ARM Cortex A7 processor with NEON and FPU. It is ideal for resource demanding applications including routers, gateways and access points. Habanero comes with a high-power, dual-band concurrent radio supporting 802.11ac Wave2 technology (2x2 MiMo). QCA8075C PHY gives support to 5 x Gigabit Ethernet ports. It also has 1 x USB3.0 and 1 x USB2.0 ports and supports other miscellaneous interfaces, which can be configured as general-purpose I/O pins. Hardware based NAT engine and security features like crypto engine, secure boot make it ideal for high-end, fast and secure networking applications.

Habanero comes in two temperature ranges:

Commercial :Habanero - Wi-Fi module
- Commercial temperature range: 0-65°C
Industrial : Habanero-I - Wi-Fi module
- Industrial temperature range: -40-85°C

Specifications:

CPU : ARM Cortex-A7, quad-core (717 MHz) IPQ4019/IPQ4029
Memory : Up to 1 GB NAND (external – available on Habanero-DVK) and 32 MB NOR Flash, 512 MB DDR3L RAM
Frequency : 2.4 and 5 GHz concurrent
Max output power : up to 22 dBm per chain
Wireless standard : 802.11a/b/g/n/ac Wave2 (Wi-Fi 5)
Antenna (port) : pin access
Power supply : 3.3V, max power consumption 11.5W
Available interfaces : 46 x GPIO, 1 x PCie 2.0, 1 x USB3.0, 1 x USB2.0, 2 x UART, 1 x SPI, 2 x I2C, 4 x PWM, 1 x JTAG, 1 x I2S/TDM, 5 x 1000/100/10 ethernets, 1 x RGMII, 1 x SDIO3.0/eMMC and parallels for NAND flash memory and LCD controller
Size : 45 by 49 mm
