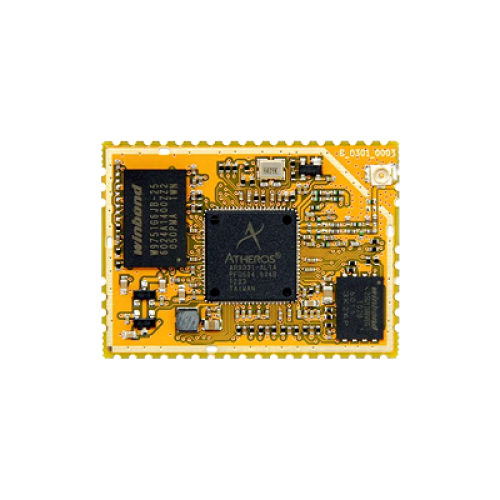

8devices Carambola2 is a member of Carambola wireless modules family and is based on Qualcomm AR9331 SoC.Carambola2 is a surface mountable, single sided, Wi-Fi enabled Linux module, featuring the lowest power consumption in the industry.
Module comes in two versions:
- Commercial : Carambola2 - Wi-Fi module
Commercial module version is operating in 0 - 60 °C temperature range (Industrial -40 - 85°C).
- Industrial : Carambola2-I - Wi-Fi module
Industrial module version is operating in -40 - 85°C temperature range (Commercial 0 - 60 °C).
8devices is providing OpenWRT linux distribution source code with necessary patches on GitHub repository.
Specifications:
- CPU: AR9331, 400 MHz
- Memory : 16 MB Flash and 64 MB DDR2 RAM
- Frequency : 2.4 GHz
- Max output power : 21 dB
- Wireless standard : 802.11 bgn
- Antenna (port) : U.FL connector
- Power supply : 3.3 V, power consumption 0.5 W
- Available interfaces : USB host/slave, serial port, 2 x Ethernet, i2S, SLIC, SPDIF, 23 x GPIO
- Size : 28 by 38 mm
- Software : OpenWrt
Development Kit:

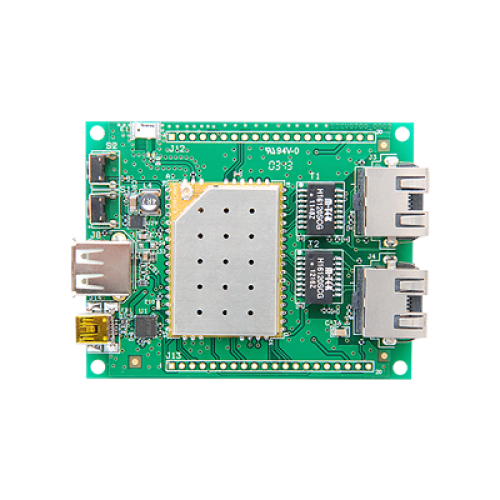

- Carambola2-DVK :
This development kit has an open source development board with Carambola2 (commercial version) for a quick start of your new Internet of Things era project.
Devboard specifications:
- Integrated 2.4 GHz chip antenna
- Two 10 pitch (2.54 mm) prototyping area holes
- Two Ethernet ports (Eth0, Eth1)
- One type A USB socket
- One mini-A USB socket (console + power 5V)
- One hardware reset button
- One GPIO programable button
Documents:
Package Includes:
- 1 x 8devices Carambola 2
8devices Carambola 2 - Single-band SOM
- Brand: 8devices
- Product Code:8d-Carambola-2
- Reward Points:42
- Availability:In Stock
-
रo 4,202.00
- Price in reward points:4202
-
- 3 or more रo 4,168.00
- 7 or more रo 4,135.00
- 15 or more रo 4,101.00
- 35 or more रo 4,068.00
