This is an M.2 (A+E Key) to SATA3.0 two-port adapter expansion card that can transfer out 2 SATA ports through the M.2 (A+E Key) slot of the PC host. LattePanda Delta / Alpha users can connect two SATA ports’ solid-state drives or hard disk drives through SATA data cable at the same time. With outstanding PCle3.1 bus bandwidth integrated, it has a faster data transmission speed and is committed to providing LattePanda Alpha users with faster speed, lower power consumption, high reliability, and high-performance storage solutions.

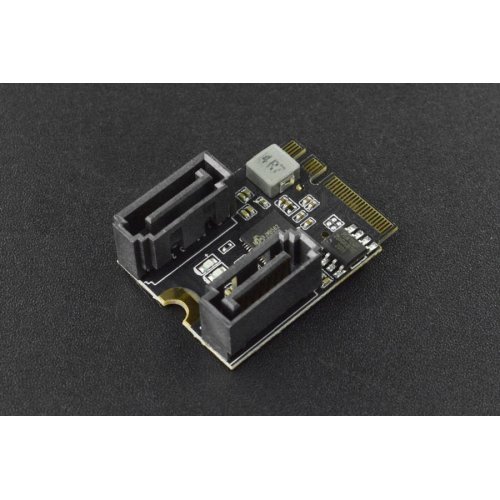

The expansion card is equipped with two standard SATA interfaces. Users only need to insert this card into the M.2 slot of the motherboard, and then connect two SATA interface SSD solid-state drives or hard disk drives at the same time through the SATA data cable.

Using PCle3.1 bus bandwidth, the data transmission speed is much faster than PCle2.0.

The expansion card is compatible with Windows7 (X86/X64); Windows8/8.x/10 (X86/X64) (Windows built-in driver); Linux operating system. It can be widely used in LattePanda Delta/Alpha, PC computers, servers, industrial computers, and various storage devices.

Note: This M.2（A+E Key）to SATA3.0 Expansion Card is not compatible with LattePanda V1.

Specifications:

• Supports one channel of PCI Express
• Support NGFF (M.2) 2230 key A/E
• Compliant with PCI Express basic specification revision 3.1a
• Support PCI Express link-layer energy-saving mode
• Support 2 SATA ports
• M.2 A+E Key
• Support port multiplier
• Compliant with SATA specification revision 3.2
• Support command-based and FIS-based port multipliers
• Support AHCI mode and IDE programming interface
• Support native command queue (NCQ)
• Support SATA link energy-saving mode (partial and hibernation)
• Support SATA plug-in detection function
• Support drive power control and staggered rotation
• Support SATA Partial / Slumber power management status

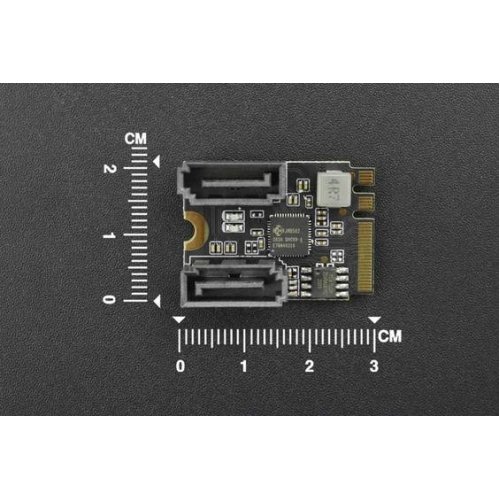

• Size: 30mm*21mm/1.18*0.83”

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

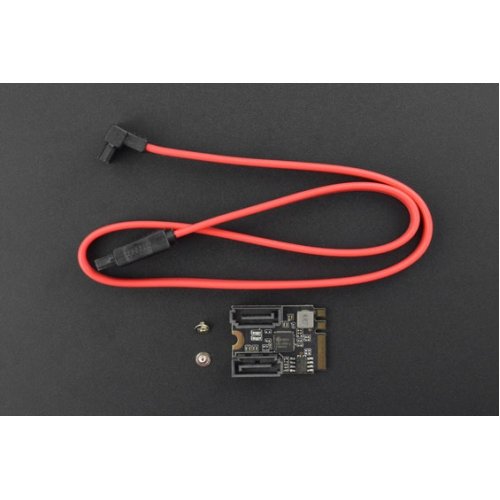

Package Includes:

• 1 x M.2（A+E Key) to SATA3.0 Expansion Card
• 1 x User Manual
• 1 x SATA Cable
• 1 x M.2 Screw
