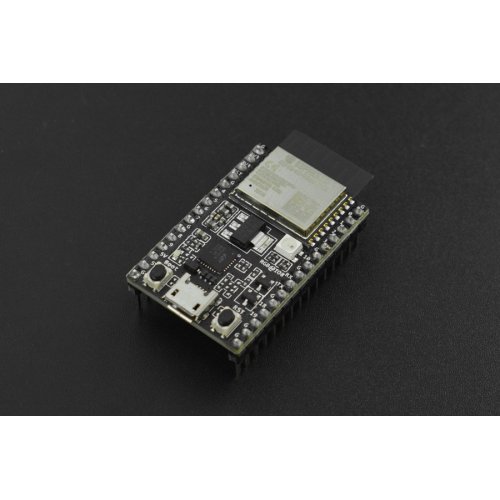

ESP32-C3-DevKitC-02 is an entry-level development board based on ESP32-C3-WROOM-02, a general-purpose module with 4 MB SPI flash.

This board integrates complete Wi-Fi and Bluetooth LE functions.

Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-02 on a breadboard.

Features:

• Integrates complete Wi-Fi functions.
• Integrates complete Bluetooth LE functions.

Specifications:

• ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
• 384 KB ROM
• 400 KB SRAM
• 8 KB RTC SRAM
• 40 MHz crystal oscillator
• 4 MB SPI flash
• Operating Voltage/ Power supply: 3.0~3.6 V
• Operating Temperature Range: –40~85°C

Documents:

• User Guides

Package Includes:

• 1 x ESP32-C3-DevKitC-02 Development Board
