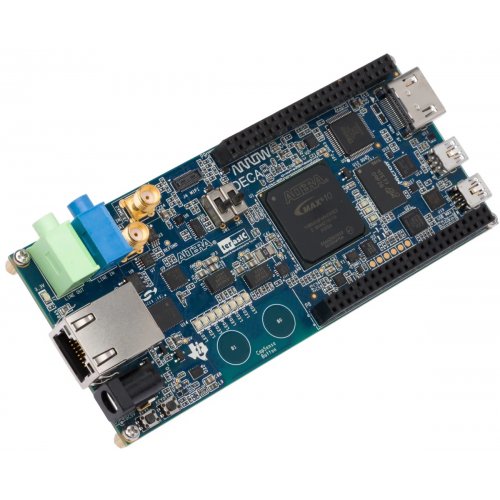

The DECA Development Kit presents a robust hardware design platform built around the Altera MAX 10 FPGA, which is the industry’s first single chip, non-volatile programmable logic devices (PLDs) to integrate the optimal set of system components. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power FPGA system. Providing internally stored dual images with self-configuration, comprehensive design protection features, integrated ADCs and hardware to implement the Nios II 32-bit microcontroller IP, MAX10 devices are ideal solution for system management, I/O expansion, communication control planes, industrial, automotive and consumer applications.

The DECA development board is equipped with high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more that promise many exciting applications. The DECA Development Kit contains all the tools needed to use the board in conjunction with Altera’s Quartus II Design Software.

PC Requirements (laptop needed):

• Windows 7, 64-bit or Windows 8, 64-bit
• 4 GB RAM
• Minimum of i3 core
• Approximately 20 GB free hard disk space
• Internet access

Features:

• FPGA Device
• MAX 10 10M50DAF484C6G Device
• Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
• 50K programmable logic elements
• 1,638 Kbits embedded memory
• 5,888 Kbits user flash memory
• 4 fractional PLLs
• Configuration and Debug: Onboard USB-Blaster II (mini USB type B connector)
• Memory Device:
• 512MB DDR3 SDRAM (16-bit data bus)
• 64MB QSPI Flash
• Micro SD card socket
• Communication:
• 10/100 Mbps Ethernet PHY with RJ45 connector
• USB 2.0 PHY with mini-USB type AB connector.
• Connectors:
• Two 46-pin BeagleBone expansion headers
• Two MAX 10 FPGA ADC SMA inputs
• Display: HDMI TX, incorporates HDMI v1.4 features, including 3D video support
• Audio: 24-bit CD-quality audio CODEC with line-in, line-out jacks
• Video Input: MIPI CSI-2 camera interface
• Analog:
• Two MAX 10 FPGA ADC SMA inputs
• Seven MAX 10 FPGA ADC inputs from available on the BeagleBone expansion header
• Switches, Buttons, and Indicators:
• 2 push-buttons
• 2 slide switches
• 8 blue user LEDs
• Sensors:
• One proximity/ambient lighter sensor
• One humidity and temperature sensor
• One temperature sensor
• One accelerometer
• Two Capacitive touch sensor pads
• Power: 5V DC input

Documents:

• DECA User Guide
• DECA Product Brief
• DECA Schematic
• DECA BOM
• DECA Wiki page

Package Includes:

• 1 x DECA development board
• 1 x DECA Quick Start Guide
• 1 x Ethernet Cat5e cable
• 2 x USB cables (Type A to Mini-B) for USB control and FPGA programming and control
• 1 x 5V DC power adapter
