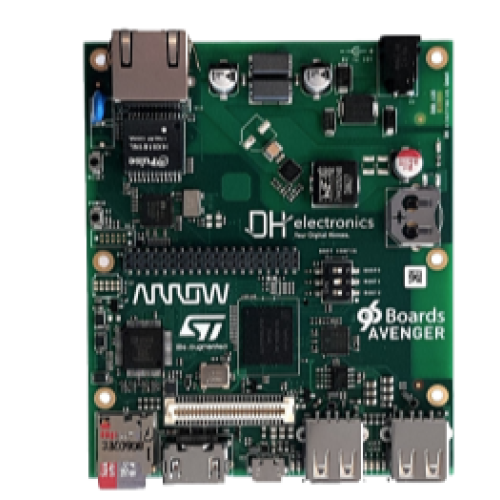

The STM32MP157 is a highly integrated multi-market system-on-chip designed to enable secure and space constraint applications within the Internet of Things. Avenger96 board features dual Arm Cortex-A7 cores and an Arm Cortex-M4 core. In addition, an extensive set of interfaces and connectivity peripherals are included to interface to cameras, touch-screen displays an MMC/SD cards. It also fully supports wireless communication, including WLAN and BLE.

Component	Description
SoC	STM32MP157AAC
CPU	2x ARM®Cortex-A7 up to 650 MHz 1x ARM®Cortex-M4 up to 200 MHz
GPU	1x 3D GPU Vivante® @ 533 MHz -OpenGL® ES 2.0
PMIC	STPMIC1A
RAM	1024 Mbyte @ 533MHz
Storage	eMMC v4.51: 8 Gbyte QSPI: 2Mbyte EEPROM: 128 byte microSD Socket: UHS-1 v3.01
Ethernet Port	10/100/1000 Mbit/s, IEEE 802.3 Compliant
Wireless	WiFi: 5 GHz & 2.4GHz IEEE 802.11a/b/g/n/ac Bluetooth® v4.2 (BR/EDR/BLE) PCB Antenna
USB	Host: 2x type A, 2.0 high-speed OTG: 1x type micro-AB, 2.0 high-speed
Display	HDMI: WXGA (1366x768)@ 60 fps, HDMI 1.4
Audio	Over HDMI
Expansion Interface	96Boards Compliant: 40-Pin Low Speed Header 60-Pin High Speed Header
LED	4x green user controlled LEDs 1x blue Bluetooth enabled 1x yellow WiFi enabled 1x red power supply okay
Button	Power and Reset
Power Source	DC Power Jack: 1.65mm Center Positive 8v - 18v upto 24W
OS Support	U-Boot version: U-Boot 2018.09-stm32mp-r2 Linux version: Linux stm32mp1-av96 4.14.48 Linux Distribution: ST OpenSTLinux Weston (A Yocto Project Based Distro)
Size	100 x 85 mm

Package Includes :

1 x 96Boards Avenger96

96Boards Avenger96

Brand: 96 Boards
Product Code:96Boards-Avenger96
Reward Points:228
Availability:In Stock

रo 22,630.00
Price in reward points:22813
2 or more रo 22,448.00
3 or more रo 22,265.00
6 or more रo 22,083.00

Qty

0 reviews / Write a review
