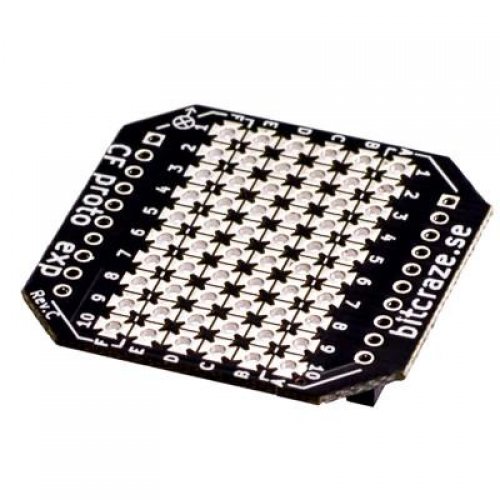

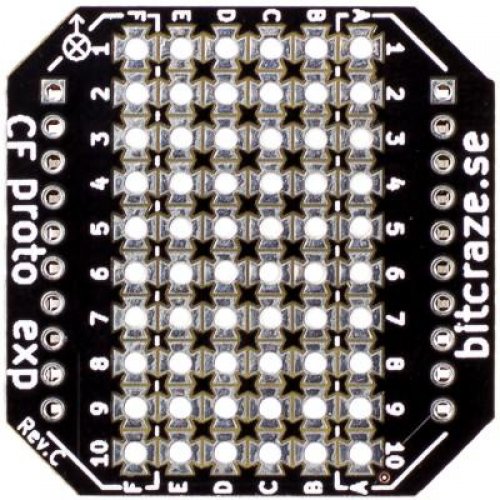

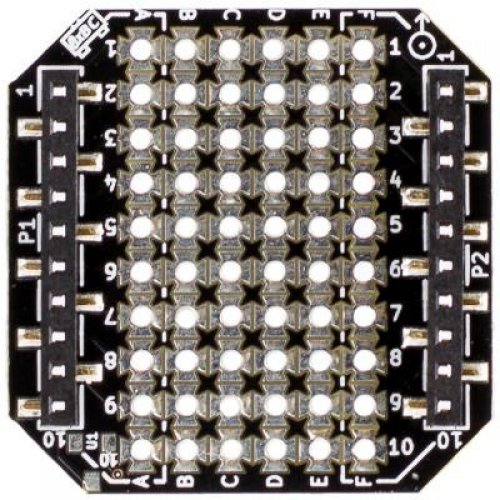

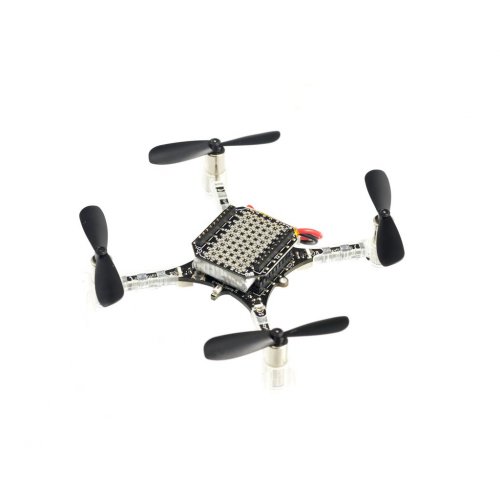

Add a prototyping area to your Crazyflie 2.X and lift your electronics into the air. Just solder directly on the expansion board and plug it to the expansion port.
Compatibility
- Works with the Crazyflie 2.X
Features:
- Soldering pads support both though hole and SMD components
- Has SOT-23 footprint for 1-wire memory used for automatic detection (not mounted)
Specifications:
- Makes all 20 pins in the Crazyflie 2.X expansion port available
- 40 pads for prototyping (supporting both though hole and SMD components)
- Footprint for optional 1-wire memory (not mounted)
- Weight: 1.5 g
- Size (BxHxW): 28 x 28 x 4 mm
- Designed for mounting above or under the Crazyflie 2.X
Documents:
Package Includes:
- 1 x Prototyping expansion board
Prototyping deck
- Brand: Bitcraze
- Product Code:BTZ-Prototyping-deck
- Reward Points:5
- Availability:In Stock
-
रo 576.00
- Price in reward points:576
-
- 10 or more रo 533.00
- 95 or more रo 498.00
