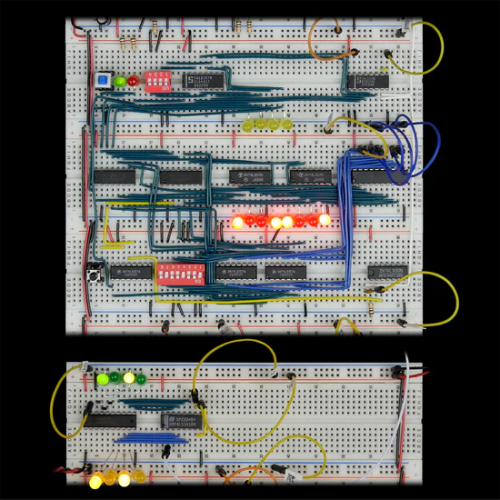

This is the third kit in a set of four kits. In this kit, you'll build the 8-bit computer's RAM module and program counter.

You should have already built the modules from the first two kit before starting this kit. This kit does not include a power supply and only two more spools of jumper wire since you will continue to use the ones included in the first two kits. Otherwise, you will need to provide a 5-volt power supply and perhaps some additional jumper wire of your own.

Package Includes:

• 4 x Breadboards (High quality BusBoard Prototype Systems BB830)
• 1 x Green hookup wire 25ft
• 1 x Yellow hookup wire 25ft
• 1 x 74LS00 quad NAND gate
• 2 x 74LS04 hex inverter
• 4 x 74LS157 quad 2-1 line mux
• 1 x 74LS161 4-bit binary counter
• 1 x 74LS173 4-bit D register
• 2 x 74189 64-bit RAM
• 2 x 74LS245 8-bit bus transceiver
• 1 x Momentary tact pushbutton
• 1 x SPDT slide switch
• 1 x 4-position DIP switch
• 1 x 8-position DIP switch
• 20 x 220Ω resistors
• 5 x 1kΩ resistors
• 10 x Red LEDs
• 10 x Green LEDs
• 10 x Yellow LEDs
• 5 x 0.01µF capacitors
• 5 x 0.1µF capacitors

Note: Full assembly instructions are provided through the YouTube videos. There is no additional material included with the kit.
