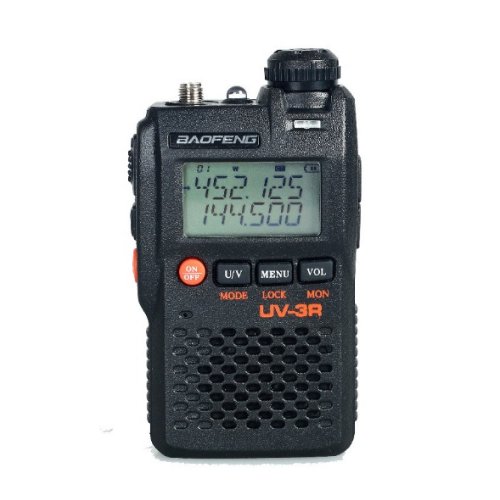

The feature-rich, high-end segment, handheld amateur radio from the house of BaoFeng, boasts to be its flagship model.

Customers please note: Fab.to.Lab cannot be held responsible for unauthorised use of this radio in your country. Please go through your countries' ASO guidelines and pre-requisites before making a purchase.

By signing our Terms and Conditions while purchasing this product, the user agrees to have read this product description page and abide by it.

Indian customers are requested to put their CallSigns in the comments section while placing an order.

Post call sign verification order will be processed and shipped in 5 - 15 business days

V-3R series two-way radios are the newest styles by BAO FENG, it has multi-functions, such as dual band, dual display, dual watch, its performances are excellent, the shape is smart, It has a good sales record in the communication market.



This series transceivers have got CE, FCC, RoHS Certificate approval, the quality is really qualified.

It is really a cost-effective LCD dual band two-way radio



  1. Output : 2W
  2. Frequency Range: 136.00-174.00 MHz

                       400.00-470.00 MHz

  1. PC or Manual Program
  2. BCL Function
  3. Battery Saving
  4. DTMF Code
  5. Dual Band, Dual Display and Dual Standby
  6. Emergency Alarm
  7. 50 CTCSS and 104 DCS Codes
  8. Keypad Tone Setting
  9. VOX Function
  10. High &Low Power Switchover
  11. Priory Scanning Function
  12. Wide/Narrow Band Selection
  13. Time-out Timer (TOT)
  14. 1750 KHz Relay Forwarding Confirmed
  15. FM Radio Function
  16. Different Frequency Setting
  17. Dimension: 99x55x29mm
  18. Packing Details: 50 Units/CTN, Carton Size: 44x43x70cm

                      N.W:22.5KGS,   G. W: 23.5KGS

Baofeng UV-3R

Description:

Frequency Range:

136.00-174.00 MHz

400.00- 470.00MHz

Storage Channel

99

Step Frequency

2.5/5/6.25/10/12.5/20/25KHz

Rated voltage

DC 3.7V

Battery Capacity

H-1500 mAh

Battery Life

About 10 Hours

Frequency Stability

2.5ppm

Work Temperature

-20  to +60

Frequency Combination

PLL frequency synthesis

Antenna Impedance

50 Ω

Wok Mode

Same Frequency  simplex Operation or Different Frequency  simplex Operation

Dimension

99x55x 29 mm (Excluded Antenna)

Weight

About 130 g

                                                         Transmitter

Output Power

2 W

Modulation Mode(W/N Band)

FM (F3E)

Maximum Frequency Deviation (W/N Band)

<5KHz(W), <2.5KHz(N)

Spurious Power

≤7.5 µW

Adjacent channel power

65dB (W) ,55dB (N)

Spurious Radiation

<-60 dB

Audio Distortion

<5 %

SNR

45dB(W), 40dB(N)

CTSCC/DCS Frequency Deviation(W/N Band)

0.7-0.1KHz (W), 0.4-0.1KHz (N)

Modulation Sensitivity

8-12mV

Transmitting Current

≤1500mA

Receiver

Sensitivity

<0.20 µ V (12dB  SINAD)

Audio Power

1 W

Inter modulation Interference Resistance

≥65dB (W), ≥55dB (N)

Adjacent channel Sensitivity (W/N Band)

≥65dB (W), ≥55dB (N)

Audio Distortion

5 %

Receiving Current

≤ 400m A

Write a review

Please login or register to review

BaoFeng Portable Amateur Radio UV-3R Dual Band (VHF/UHF)

  • Brand: Baofeng
  • Product Code:PRC-BaoFeng-UV-3R
  • Reward Points:40
  • Availability:Out Of Stock
  • रo 3,670.00

  • Price in reward points:3985
