The feature-rich, high-end segment, handheld amateur radio from the house of BaoFeng, boasts to be its flagship model.

Customers please note: Fab.to.Lab cannot be held responsible for unauthorised use of this radio in your country. Please go through your countries' ASO guidelines and pre-requisites before making a purchase.

By signing our Terms and Conditions while purchasing this product, the user agrees to have read this product description page and abide by it.

Indian customers are requested to put their CallSigns in the comments section while placing an order.

Post call sign verification order will be processed and shipped in 5 - 15 business days

BF-658 is a professional transceiver by BAO FENG, its performances are stable, the quality is reliable. Extra functions such as Noise Reduction and Scrambler make it as a cost-effective transceiver, the sales in the market is very good.



  1. Output: 6 W
  2. Frequency Range:   400.00-470.00 MHz
  3. 16 Channels
  4. PC Program
  5. FM Radio Function
  6. Voice Prompt
  7. 39 CTCSS and 83 DCS Codes
  8. Battery Saving
  9. VOX (Voice Operated Transmitting)Function
  10. Busy Channel Lock
  11.  Squelch Level
  12. Over Voltage or Low Voltage Protection
  13. Channel Monitor
  14.  TOT (Time-out Timer)
  15. Chinese/English Switch
  16. Scanning Function
  17. High Low Voltage Switchover
  18. Low Battery Warning
  19. Scrambling Function
  20. Alarm Function
  21. Noise Reduction
  22. Dimension: 105x58x33 mm
  23.  Packing Details: 50 Units/CTN,  Carton Size: 51x45x 71 cm

                    N.W: 33.5 KGS   G. W: 34.5 KGS

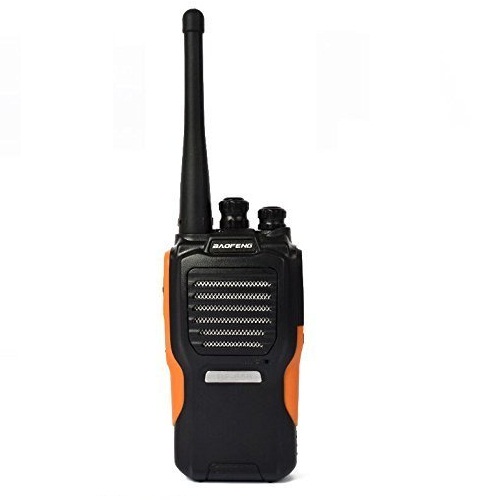

Baofeng BF-658

Specification:

General Specifications







Frequency Range

VHF 136-174MHz or UHF 400-470MHz



UHF 400-440MHz/ 440-480MHz

Channel Capacity

16





Channel Spacing

12.5/25KHz





Operated Voltage

7.4 V





Battery

H-1650MAh Li-ion



Battery Life (5-5-90 duty cycle)    About 8 hours



Frequency Stability

± 2.5ppm





Operated Temperature

-30  º C ~+60 º C



Antenna Impedance

50Ω





Dimensions (L× W× H) (with battery, without antenna) 110× 50× 34 mm

Weight (with battery/antenna)         198g

205g





Communication Range

about 10km











Transmitter





RF Power Output

6W



Modulation

F3E



Spurious Emission

≤ 65dB



FM Noise

≤ -45dB(W) ≤ -40dB (N)

Audio Distortion

≤ 5%



Transmitting Current

≤ 1.3A











Write a review

Please login or register to review

BaoFeng Portable Amateur Radio BF-658 UHF (400-470Mhz)

  • Brand: Baofeng
  • Product Code:PRC-BaoFeng-BF-658
  • Reward Points:35
  • Availability:Out Of Stock
  • रo 3,000.00

  • Price in reward points:3385
