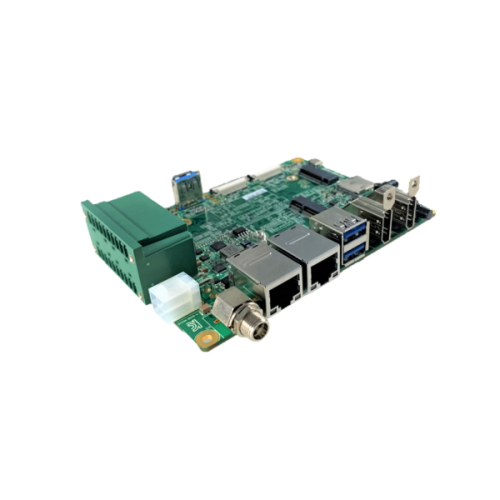

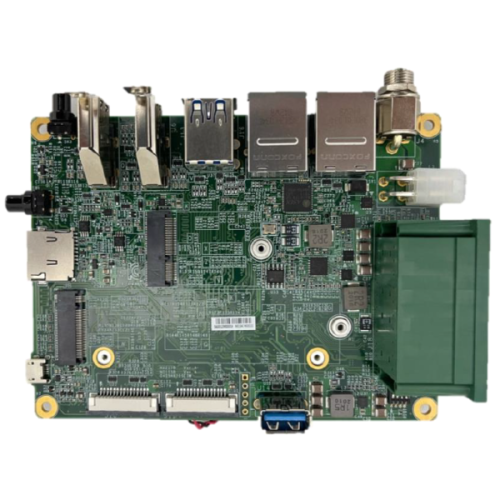

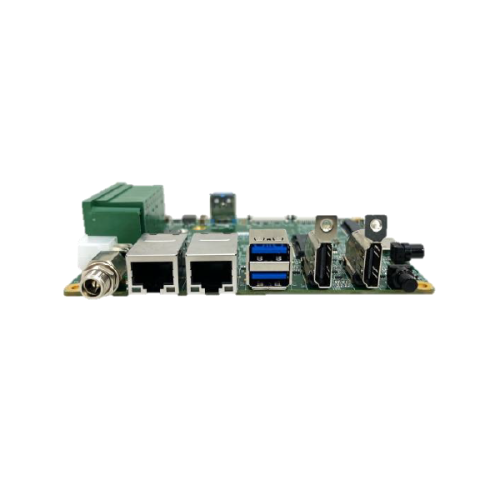

AVerMedia’s NX215 Carrier board equips powerful NVIDIA® Jetson Xavier™ NX/TX2 NX/NANO modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

AVerAI NX215 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Specifications :

Model	NX215
Type	Carrier board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Xavier™ NX/ TX2 NX/ NANO

	Version V01 module
Networking	2x GbE RJ-45

	1xM.2. key E 2230 for wifi (NANO don’t support)
Display Output	2x HDMI 2.0 (3840 x 2160 at 60Hz)

	(NANO supports 1x HDMI 2.0 )
Temperature*	Operating temperature 0°C~70°C

	Storage temperature -40°C ~ 85°C

	Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs (Internal)	•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

	(Compatible on NVIDIA® Jetson Xavier™ NX Developer Kit)

	•1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery

	3x USB 3.0 Type-A
Storage	1x micro-SD card slot

	1xM.2. key M 2280 for SSD
Expansion Header (Internal)	20 pins: 2x I2C, 1x UART, 4x GPIOs, 2xCAN (EU terminal block)
Input Power	DCINJACK on board & ATX 4pin

	12V/5A, 12V~24V is recommended.
Power Cord	US/JP/EU/UK/TW
Fan Module	Heat sink with fan (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	126mm (W) x 96mm (L)

	Weight: 125 g
Certifications	CE, FCC
