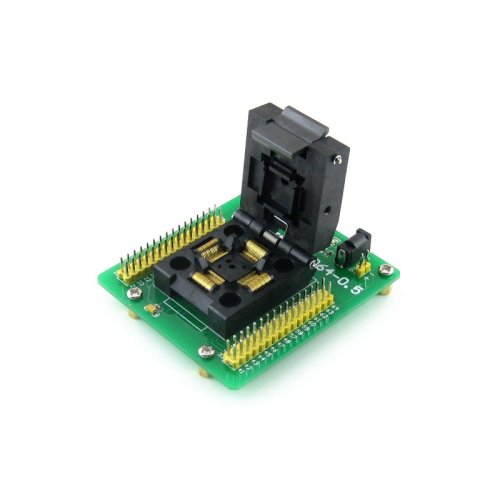

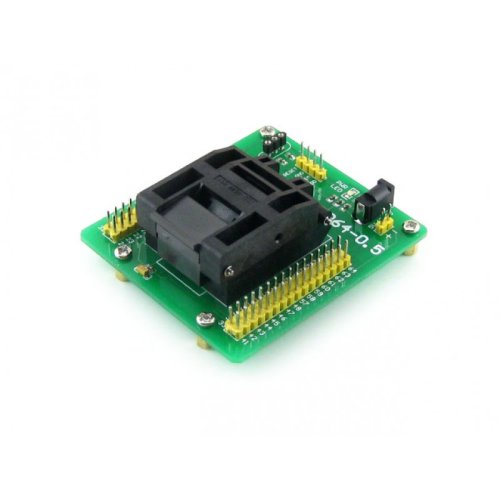

Yamaichi IC Test & Burn-In Socket With A Simple Board, Especially For STM8 Microcontroller In QFP64(0.5mm Pitch) Package.

Features :

• 4-pin SWIM Port for programming or testing
• External crystal can be connected via on board socket
• All the MCU pins are accessible on expansion connectors

Supported Devices :

STM8 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts

• STM8S207RxTx / STM8S208RxTx
• STM8Ax51x9T / STM8Ax52x9T / STM8Ax61x9T / STM8Ax62x9T

Photos

1. External crystal socket

• insert crystal to the holes on two sides, regardless of the middle hole

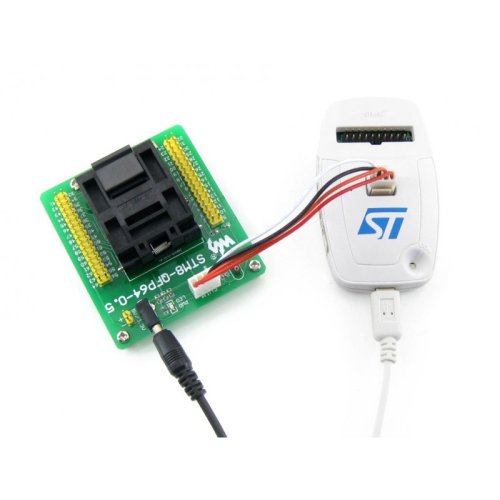

2. SWIM port

• for programming/debugging/testing
• compatible with ST-LINK, ST-LINK/V2, et

3. Pin headers connected to MCU pins

• clearly labeled with onboard marks
• easy for testing and further expansion

4. Power indicator

5. Power input

• DC5V/3.3V

Outline and Dimensions

Unit: mm

Part Number	Pitch	Pins	Applicable IC Dimensions (REF.)				Outside Dimensions (REF.)
			A x B	C x D	E	F	G x H
IC51-0644-807	0.5	64	10.0 x 10.0	12.0 x 12.0	11.3	-	32.0 x 35.0

SWIM Port Header Pinout

The STM8-QFP64-0.5 houses SWIM headers for connecting a programmer. The header pinouts are shown in the figure 1 below.

Figure 1. SWIM header pinout

Documents :

• Wiki

Package Includes :

• 1 x STM8-QFP64-0.5
• 1 x USB power cable
