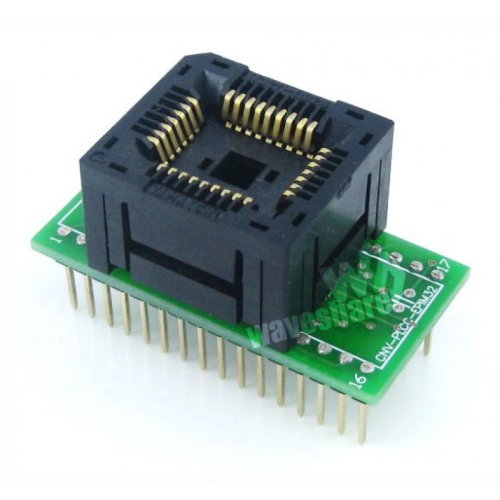

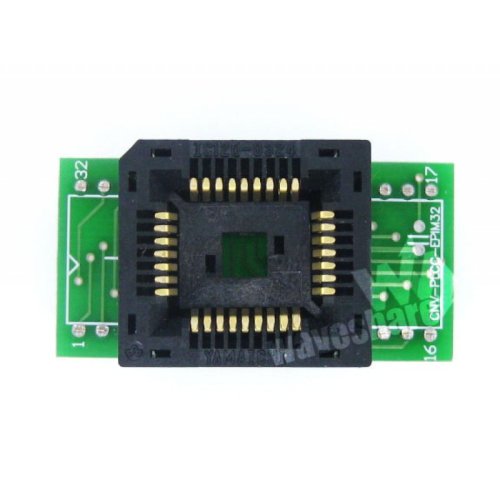

Yamaichi IC Programmer Adapter for PLCC32 package.
Features :
- High quality and durable
- Tested before shipping
- Easy to use
Supported Devices :
- Package - PLCC32
- Pitch: 1.27mm
Socket PN

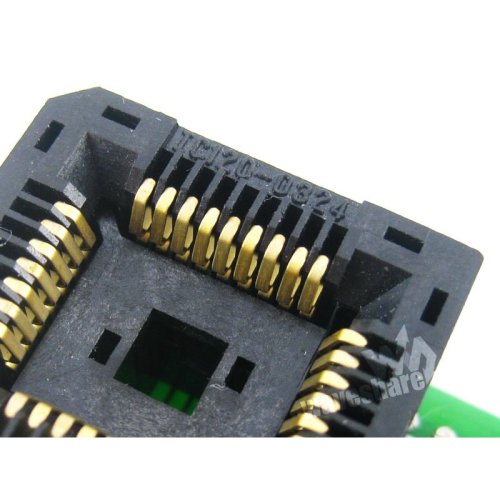

- IC120-0324-009
Documents :
DIP Pin Header Dimensions
- Pitch: 100mil (2.54mm)
- Width: 600mil (1.52cm)
Pinout Mapping
Outline and Dimensions
| Unit: mm |
| Part Number | Pitch | Pins | Socket Dim. | Inserting Direction of IC | ||
| A | B | C | ||||
| IC120-0324-009 | 1.27 | 32 | 22.5 | 25.0 | 18.0 | Dead-bug type |
 | ||||||
| Package Includes : |
1 x PLCC32 TO DIP32 adapter
Waveshare 3787 PLCC32 TO DIP32 (A), Programmer Adapter
- Brand: Waveshare Electronics
- Product Code:NR-WaveS-DIP32-(A)-Programmer-Adapter
- Reward Points:24
- Availability:In Stock
- रo 2,360.00
-
रo 1,983.00
- Price in reward points:2360
-
- 5 or more रo 2,340.00
- 10 or more रo 2,280.00
- 30 or more रo 2,260.00
- 50 or more रo 2,240.00
- 65 or more रo 2,220.00
