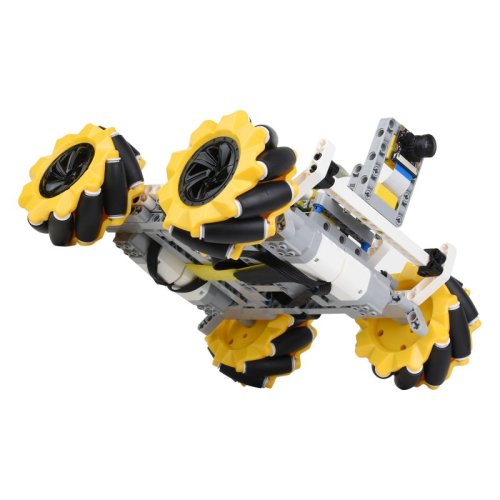

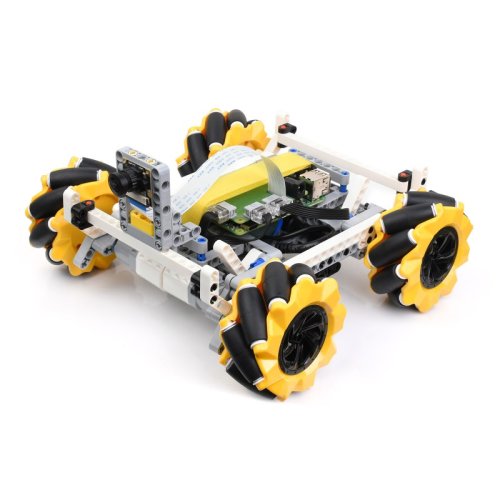

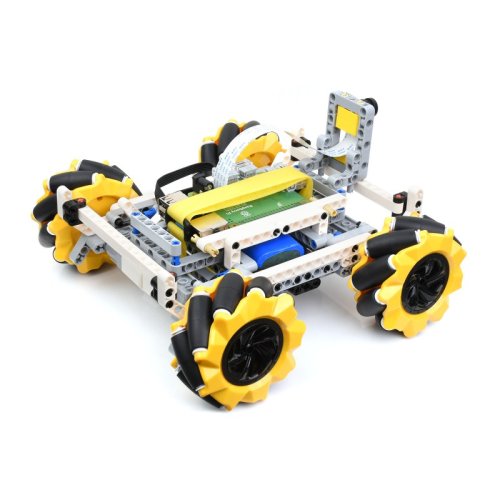

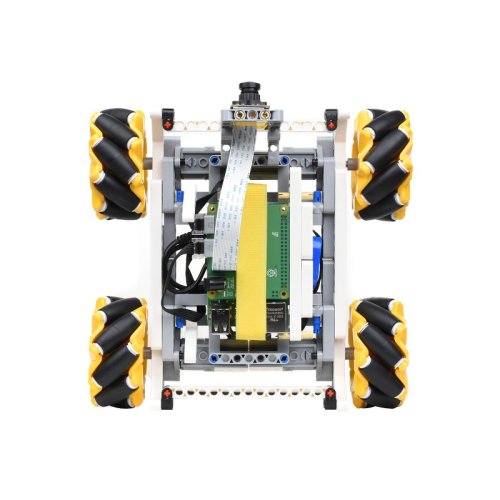

BuildMecar Kit, Smart Building Block Robot with Mecanum Wheels, 5MP Camera, Based on Raspberry Pi Build HAT.

Mecanum Wheels · Building Block Robot
Based on Raspberry Pi Build HAT
Build Your Own Smart Robot By Blocks


Features :
Smart robot is always the favorite thing of electronic fans, meanwhile, building blocks can be used to make various objects in different constructions, such as vehicles, buildings, and working robots. Whatever you made, you can break it down and build another new thing by the pieces again.

The Build HAT Python library is able to control sorts of motors and sensors with an LPF2 connector, this make it possible to build creative combination by using the Raspberry Pi Build HAT and building blocks, so here comes our BuildMecar - a smart robot with Mecanum wheels, and built by blocks. It will move in any direction based on the Mecanum wheel technology, enabling more funny possibilities for the smart robots.

  • Designed on the basis of Raspberry Pi Build HAT, easily controlling sorts of motors and sensors with an LPF2 connector
  • Built by blocks, feel free to customize your unique robot
  • High discharge coefficient Li-ion batteries, providing great power supply for the robot
  • Features Mecanum wheels, allows lateral movement, or spinning in the original place
  • Optional camera, gives your robot an eye
Selection Guide
  KIT-A KIT-B KIT-C
Block pack
Accessory pack A (Build HAT)
Accessory pack B (Camera)
Accessory pack C (Pi 4)



Raspberry Pi Build HAT
A Flexible System With Unlimited Possibilities
The Raspberry Pi Build HAT fits any Raspberry Pi with a 40-pin GPIO header and lets you control sorts of motors and sensors with an LPF2 connector

Building Block Structure

The Body Is Built By Blocks, You Can Define It Freely By Your Ultimate Imagination.
Comes With Raspberry Pi Python Example For Web Remote Control, Allows Adding/Removing Functions.

Great Power Supply
7.4V High Discharge Coefficient Li-Ion Batteries, 2600mAh Capacity, 5C Discharge Coefficient

Mecanum Wheels, Omnidirectional Movement
Allows Moving In Any Direction Including Go Straight, Move Lateral, Move Oblique, Spin...
More Smooth Ride Experience, Flexible Obstacle Avoidance


5MP 160° Wide Angle Camera

Quality OV5647 Sensor



Structure Introduction
Documents :

Package Includes :

Kit-A

  • 1 x Block pack
  • 4 x motor
  • 4 x 80mm Mecanum wheel
  • 2 x Self-gripping strap
  • 1 x Li-ion battery 7.4V 2600mAh
  • 1 x Raspberry Pi Build HAT
  • 1 x 8.4V 2A power supply
  • 1 x Double-sided tape

Kit-B

  • 1 x Block pack
  • 4 x motor
  • 4 x 80mm Mecanum wheel
  • 2 x Self-gripping strap
  • 1 x Li-ion battery 7.4V 2600mAh
  • 1 x Raspberry Pi Build HAT
  • 1 x 8.4V 2A power supply
  • 1 x Double-sided tape
  • 1 x 5MP wide angle camera


Kit-C

  • 1 x Block pack
  • 4 x motor
  • 4 x 80mm Mecanum wheel
  • 2 x Self-gripping strap
  • 1 x Li-ion battery 7.4V 2600mAh
  • 1 x Raspberry Pi Build HAT
  • 1 x 8.4V 2A power supply and 5V Type-C power supply
  • 1 x Double-sided tape
  • 1 x 5MP wide angle camera
  • 1 x Raspberry Pi 4
  • 1 x 16GB Micro SD card
  • 1 x Copper heatsink
  • 1 x Card reader
