After the success of UP², an official Intel AI & IoT platform, we give you the UP Squared Pro.

Intel Atom® processor E3900 series, Intel® Celeron® processor N3350, and Intel® Pentium® processor N4200 platform, formerly Apollo Lake

  • USB 3.2 Type A x3, USB 3.0 OTG Micro B x1
  • 16-pin GPIO, COM port x 2, Audio Jack x 1
  • GbE LAN x 2
  • 12~24V DC-IN Power
  • Support WiFi/ 4G/ 5G/ AI/ Storage expansion via M.2 slots
  • Ruggedized fanless: 0°C ~ 55°C

Specifications:

Product Details

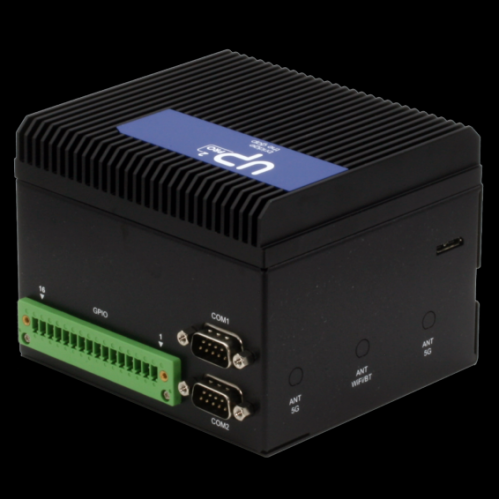

Name UP Squared Pro Edge Atom 0464 E3950 with AI module
SKU UPN-EDGE-APLX7F-A10-0464-AI
General
Mainboard UP Squared Pro
Processor Intel Atom® x7-E3950
Graphics Intel® HD Graphics 500
VPU optional (via M.2 2280)
Pre-Installed Module via M.2 2280 - 2x Myriad X or  N/A
Memory 4GB/4GB
eMMC / Storage 32 GB/64 GB
FPGA Intel® FPGA Altera MAX 10
MCU N/A
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux ( Ubuntu, Yocto)
Dimension 117mm x 106.5mm x 88.8mm
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2)4K @ 60 hz
I/O
USB USB 3.0 Type A x3
USB 3.0 OTG Micro B x1
Audio Audio Jack line-in/out
Serial Port 2x RS232/422/485
Expansion Slot 1 x M.2 2230 E
1 xM.2 2280 M
1x M.2 3042/3052 B co-lay
1x Nano SIM
GPIO 1
Others Infineon TPM SLB9670 on board
Connectivity
Ethernet 2 x GbLAN (Intel i210 AT) support TSN
Wi-Fi optional ( via. M.2 2230 )
Bluetooth optional ( via. M.2 2230 )
LTE / 4G / 5G optional ( via. M.2 3042/3052 )
Power
Power Requirement 12~ 24V DC-IN ( lockable connector)
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 20 Watt
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 32°F ~ 131°F (0°C ~ 55°C)
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 473,779 Hours
Certification CE/FCC Class A
Package
Net Weight 763.8g
Gross Weight 3000 gm
Package dimension (L x W x H) 210 *180*130 mm
HS Code 8471500000
Country of Origin Taiwan
Longevity
Longevity 2031

Documentations:

Write a review

Please login or register to review

UP Squared Pro Edge Atom 0464 E3950 with AI module

  • Brand: UP Shop
  • Product Code:NR-UP-Pro-Edge-Atom-0464 E3950-AI
  • Reward Points:507
  • Availability:In Stock
  • रo 49,858.00

  • Price in reward points:50668

  • 2 or more रo 49,452.00
  • 3 or more रo 49,047.00
