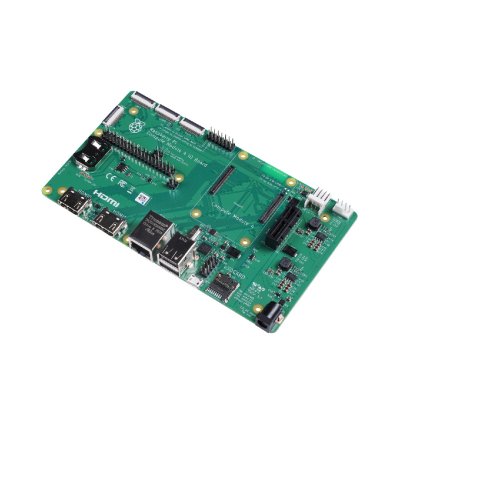

• Raspberry Pi Compute Module 4 IO Board
The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4. It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products. The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.

Features:
  • Companion board for Raspberry Pi Compute Module 4
  • Dual display support at resolutions up to 4K
  • Hardware video decode at up to 4Kp60
  • Dual camera interfaces
  • PCIe Gen 2 x1 interface
Specifications:

Socket CM4 socket: suitable for all variants of Compute Module 4
Connectors Standard Raspberry Pi HAT connectors with PoE support
   Standard PCIe Gen 2 x1 socket
RTC Real-time clock (RTC) with battery backup
Video Dual HDMI connectors
  Dual MIPI display connectors
Camera Dual MIPI camera connectors
Ethernet Gigabit Ethernet socket supporting PoE HAT
USB On-board USB 2.0 hub with 2 USB 2.0 connectors
SD Card  SD card socket for Compute Module 4 variants without eMMC
eMMC programming Support for programming eMMC variants of Compute Module 4
Fan Controller  PWM fan controller with tachometer feedback
Input Power 12V input, +5V input with reduced functionality
Dimensions  160 mm × 90 mm

Package Includes:
  • 1 x Raspberry Pi Compute Module 4 IO Board

Write a review

Please login or register to review

Raspberry Pi Compute Module 4 IO Board

  • Product Code:SP-Module4-I/O-Board
  • Reward Points:33
  • Availability:Out Of Stock
  • रo 3,306.00

  • Price in reward points:3306
