• RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 2MB L2 cache @ 1.0GHz
• Vision DSP Tensilica-VP6 for computing vision @ 600MHz
• NVDLA Engine (configuration 2048 MACs @ 800MHz)
• Neural Network Engine (1024MACs @ 500MHz)

Memory

• 8GB LPDDR4

Wireless Connectivity

• 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)

• Bluetooth 4.2 (BLE)

Video Processing

• 2 x MIPI-CSI (up to 4K@30fps), 1 x MIPI-DSI (up to 4K@30fps)

• 1 x HDMI 1.4 (up to 1080p@60fps display)
• Video Decoder (H264/H265) up to 4K@60fps; Support Dual stream decoding for 2K@30fps each
• Dual channels of ISP, each channel support up to 4K@30FPS
• Support MIPI-CSI TX for video output after ISP and AI processing
• JPEG encoder/decoder

Dedicated Audio Processing DSP and Sub-system

• Ultra-low power Voice Activity Detector for audio bit-stream as a Voice Trigger

• On-chip Audio DAC
• Support DMIC and AMIC, up to 4 channels

• 4 x USB 3.0 ports
• 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
• Gigabit Ethernet Connector
• 3.5 mm Audio jack (4-pole stereo audio output)
• Micro-SD card slot for system boot and data storage
• Support TRNG and OTP
• Support DMAC, QSPI and other peripheral
• Reset and Power Button

• Power supply PD/QC 9V/12V/15V/20V 2A

Power Connector

• USB Type-C port or 40-pin GPIO header

Dimension

• 100 mm × 72 mm

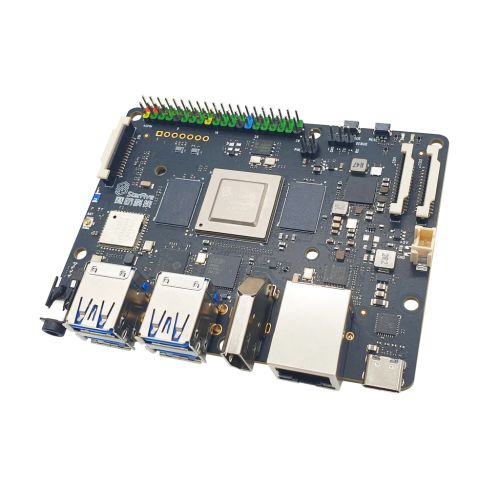

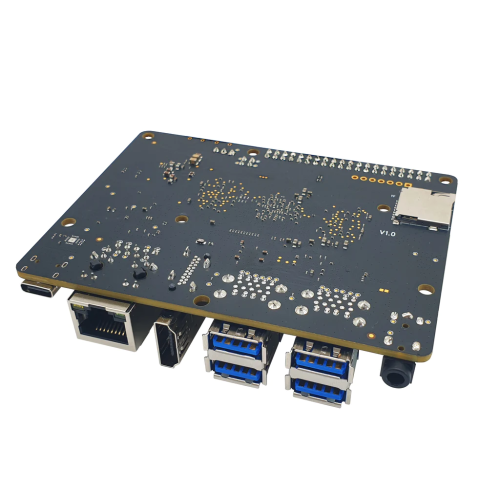

• 1 x StarFive VisionFive Single Board Computer

The hardware is experimental and strictly for engineering and development purposes only! -

• Starter Kit content
• 1 x StarFive VisionFive Single Board Computer
• 1 x Heatsink with fan
• 1 x 32GB SD card with pre-flashed Fedora OS

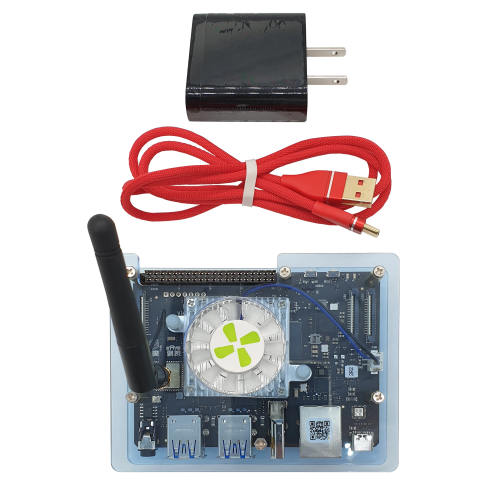

• Advanced Kit content
• 1 x StarFive VisionFive Single Board Computer
• 1 x Heatsink with fan
• 1 x 32GB SD card with pre-flashed Fedora OS
• 1 x Power supply
• 1 x USB-A to USB-C power/data cable
• 1 x 40 pin pin-header extension

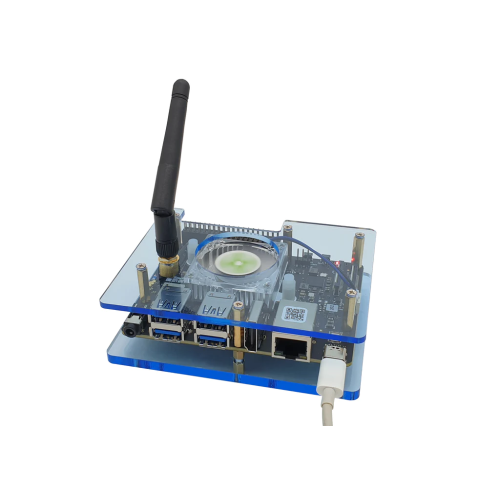

• 1 x Acrylic protector case incl. mounting spacers and WiFi antenna
